YOKOKAWA MOTORS

             PRODUCT DESCRIPTION

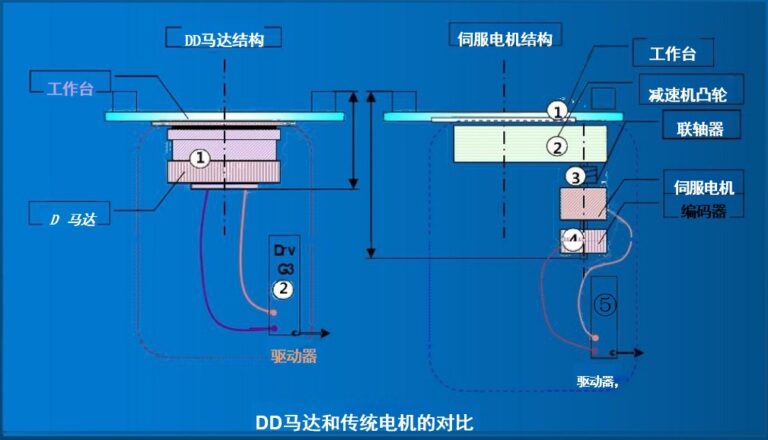

Yokokawa Direct Drive Rotary (DDR) motors are high-performance motion solutions designed to deliver unmatched precision, torque, and reliability without the need for couplings or traditional transmission mechanisns. Featuring a compact inner/outer rotor design, these motors directly connect to the load, eliminating mechanical backlash and ensuring smooth, accurate motion. With sizes ranging from 40 mm to 760 mm and peak torque capacities from 0.8 Nm to 5000 Nm, DDR motors are ideal for applications demanding high rigidity, high torque, and high precision.

VIDEO

Renewable Energy

Application equipment:

Including hot press/ pairing/ coating/ roller press/ weld cutting/ shelling machine.

Semiconductor
Application equipment:
Dicing machine

It works with the scribing and cutting of side corrosion process and vertical structure process, which requires    stability, small vibration and high speed.

Display Panel
Application equipment:

COG/FOG, dispensing machine, bonding machine, AOI machine.

3C Electronic Machine
Application equipment:

The linear motors and  DD motors are applied to realize handling/ AOI/ welding/ laser processing/ mortise pressing/  sticking mold/ auto screw/ FATP processing

                  ADVANTAGES

  • Achieve higher precision than traditional AC servo systems

  • Eliminate backlash and transmission errors

  • Reduce production and labor costs

  • Improve production efficiency and throughput

  • Lower energy consumption

  • Minimize response delay

  • Save installation space

  • Increase overall system stability

Technical Specifications

1. Display Panel

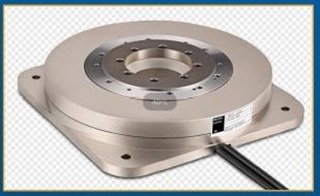

          Model ：DMFE112-008FE
  • Continuous torque:3N.m
  • Peak torque: 8N.m
  • Absolute accuracy:±26 arc-sec
  • Repetitive positioning accuracy:±1.2 arc-sec

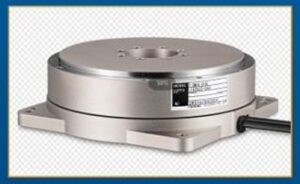

        Model ：DMFE170-010FE4C1
  •  Continuous torque: 4 N.m
  •  Peak torque: 10 N.m
  • Absolute  accuracy:±26/±10  arc-sec
  •  Repetitive positioning accuracy:±1.2 arc-sec

2. Semiconductor

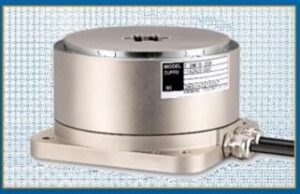

          Model : DMFE170-045FE4
  •  Continuous  torque:17  N.m
  • Peak torque: 45 N.m
  • Absolute accuracy:±26/±10 arc-sec
  • Repetitive positioning accuracy:±1.2 arc-sec

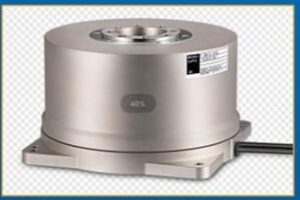

          Model:DMFI224-040FE4

  • Continuous torque: 35 N.m
  • Peak  torque:50  N.m
  • Absolute accuracy:±26/±10 arc-sec
  • Repetitive positioning accuracy:±1 arc-sec

3. Renewable Energy

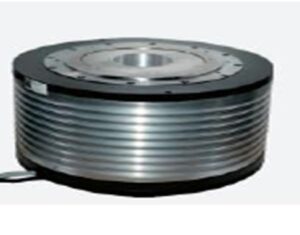

            Model:DMFI375-1000RE42
  • Continuous   torque:360   N.m
  • Peak  torque:1000 N.m
  • Absolute   accuracy:±10 arc-sec
  • Repetitive  positioning  accuracy:±1  arc-sec
