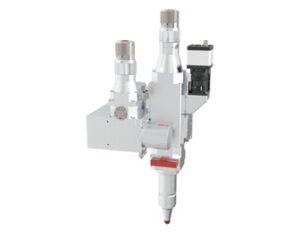

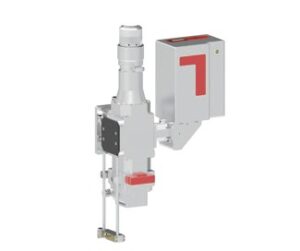

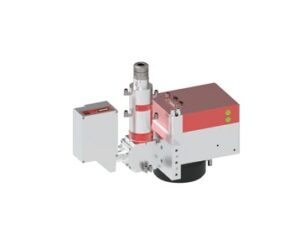

WPD Welding Process Detection Module
Product Description
The laser welding process involves optical radiation phenomena such as plasma radiation, thermal radiation from the melt pool, and laser back reflection. These signals reflect the welding state and potential defects. Photoelectric sensors convert these optical signals into electrical signals. By collecting and analyzing these signals, a reliable data envelope is formed, allowing for real-time, high-resolution, non-invasive inspection of the welding process. This enables accurate defect detection and quality monitoring, enhancing welding precision, efficiency, and yield.
PRODUCT HIGHLIGHTS

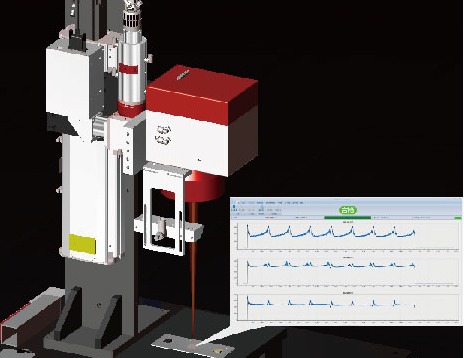

Real-time monitoring function: Synchronization with the welding process and instant graphical presentation of data
Rapid response function: Immediate alarm in case of data anoma-lies, quick feedback on weld quality
Efficient and precise function: No negative impact and accurate judgment
Process Defect Detection
High Frequency Signal Acquisition
Equipment Status Detection
High Signal-to-Noise Ratio
Production Quality Traceability
Multiple l/O Ports
SPECIFICATIONS
| Measurement Method | Coaxial Measurement |
| Number of I/O | 16/16 |
| Number of Sensors | 3 |
| Sensor Type | Plasma, Laser Back Reflection, Thermal Radiation |
| Sampling Frequency | 200kHz |
| Operating Voltage | 24V DC |
| Communication System | I/O, Ethernet, Industrial Bus |
