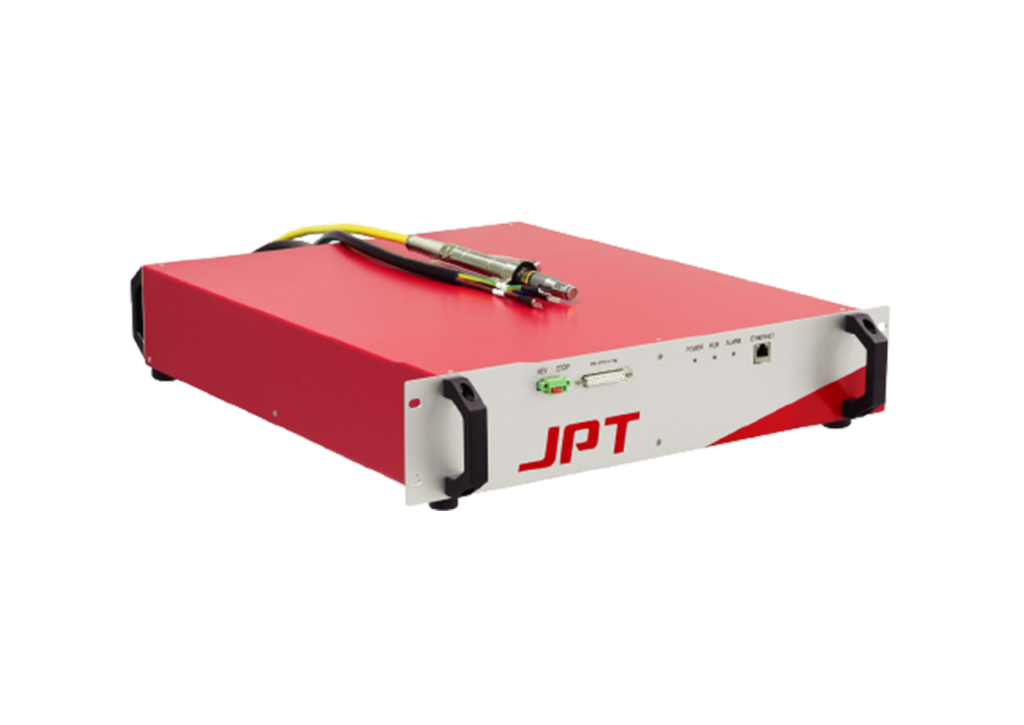

Thulium-Doped Fiber Laser
Thulium-Doped Fiber Laser
20-200W
Thulium-Doped Fiber Lasers represent a class of 2μm wavelength laser systems utilizing advanced thulium-doped fiber technology. These lasers deliver unique wavelength advantages, high efficiency, and multi-functional capabilities, making them essential tools for medical, industrial, and scientific applications requiring high precision and reliability.
1940nm Central Wavelength
20kHz Modulation Frequency
Air-Cooled Cooling Method
ADVANTAGES
° Near-Single-Mode Output
Delivers near-diffraction-limited beam characteristics for ultra-fine focusing spots and high-precision processing
° Wide Application Range
Extensively applicable across multiple fields including laser medicine, atmospheric detection, LIDAR, material processing, and scientific research
° Stable & Reliable Performance
Ensures consistent operation with minimal maintenance requirements
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | DL-2000-L-W | DL-3000-L-W |
|---|---|---|---|
| Product Model | DL-2000-L-W | DL-3000-L-W | |
| Beam Parameter Product | mm×mrad | ≤30@400µm | ≤40@600µm |
| Armored Cable Length | m | 10 | 10 |
| Average Output power | W | 2000 | 3000 |
| Maximum Modulation Frequency | kHz | 20 | 20 |
| Cooling Method | Water Cooled | Water Cooled | |
| Operating Voltage | V | 220 (AC) | 380 (AC) |
| Maximum Power Consumption | kW | 5 | 7 |
| Central Emission Wavelength | nm | 915/976 | 915/976 |
| Spectral Width @3dB | nm | <6 | <6 |
| Operating Temperature | °C | 10~40 | 10~40 |
| Laser Weight | kg | 27 | 31 |
| Dimensions (L×W×H) | mm | 575×482×105 | 575×482×105 |
