DPSS LASER
Sparrow-355/532
Sparrow-355/532
800mW-2W

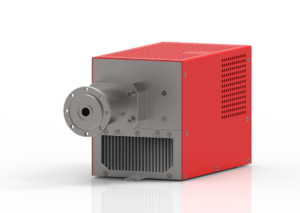

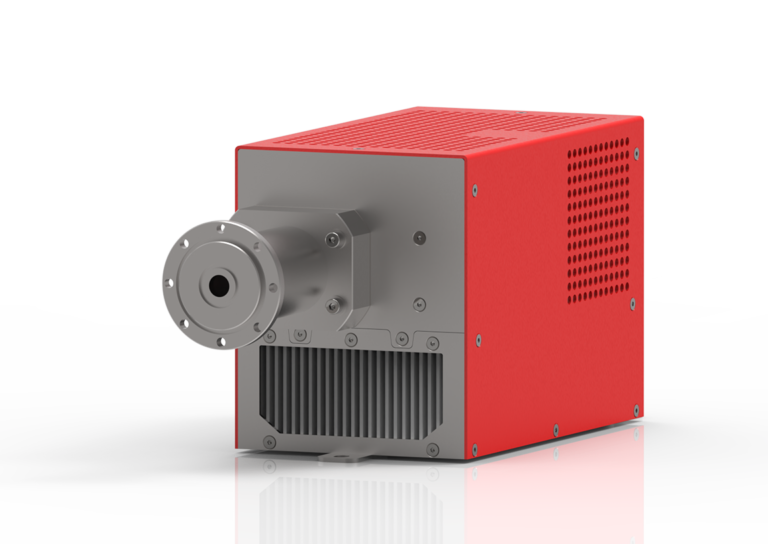

The Sparrow-355-2 represents a newly upgraded air-cooled ultraviolet solid-state laser, featuring further reduced dimensions and weight for optimized customer installation space efficiency.
355/532 Wavelength
800mW-2W Average Power
Air Cooled Cooling Method
ADVANTAGES
° Air-Cooled Structure with Intelligent Speed Regulation
° Compact Form Factor: Reduced Size, Lighter Weight, Enhanced Aesthetics
° Advanced EMI Resistance | High-Efficiency Thermal Management | User-Friendly GUI Interface
° Tool-Free Installation | Maintenance-Free Operation
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | Sparrow-355-800 | Sparrow-355-2 | Sparrow-532-2 |
|---|---|---|---|---|
| Model | Sparrow-355-800 | Sparrow-355-2 | Sparrow-532-2 | |
| Wavelength | nm | 355 | 355 | 532 |
| Average Power | kHz | >800mW@50kHz | >2W@30kHz | >2W@80kHz |
| Pulse Width | kHz | <15ns@50kHz | <15ns@30kHz | <15ns@80kHz |
| Frequency Range | kHz | 30~150 | 20~200 | 30~150 |
| Spatial Mode | TEM₀₀ | TEM₀₀ | TEM₀₀ | |
| M² | ≤1.3 | ≤1.2 | ≤1.3 | |
| Beam Circularity | >85% | >90% | >85% | |
| Beam Full Divergence Angle | mrad | <2.5 | ≤2 | <3.0 |
| Beam Diameter | mm | 0.45±0.15 | 0.45±0.15 | 0.45±0.15 |
| Polarization Ratio | >100:1 | >100:1 | >100:1 | |
| Polarization Orientation | Horizontal | Horizontal | Vertical | |
| Average Power Stability | hr | RMS≤5%@24 | RMS≤3%@24 | RMS≤5%@24 |
| Pulse-to-Pulse Stability | kHz | RMS≤5%@40 | RMS≤3%@30 | RMS≤5%@80 |
| Operating Temp.&RH | °C | 0~35; <80% | 0~40; <80% | 0~35; <80% |
| Storage Temp.&RH | °C | -15~50; <90% | ||
| Cooling Method | Air Cooled | |||
| Electricity Requirement | V | 12 (DC) | ||
| Average Power Consumption | W | <75 | <120 | <75 |
| Dimensions (L×W×H) | mm | 173.5×93.2×131.1 | 200.5×114×137 | 173.4×92×129.6 |
| Laser Weight | kg | 2.6 | 4.32 | 2.6 |
