DPSS LASER

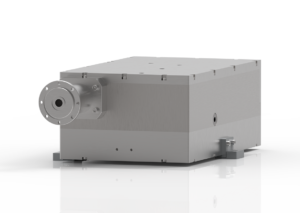

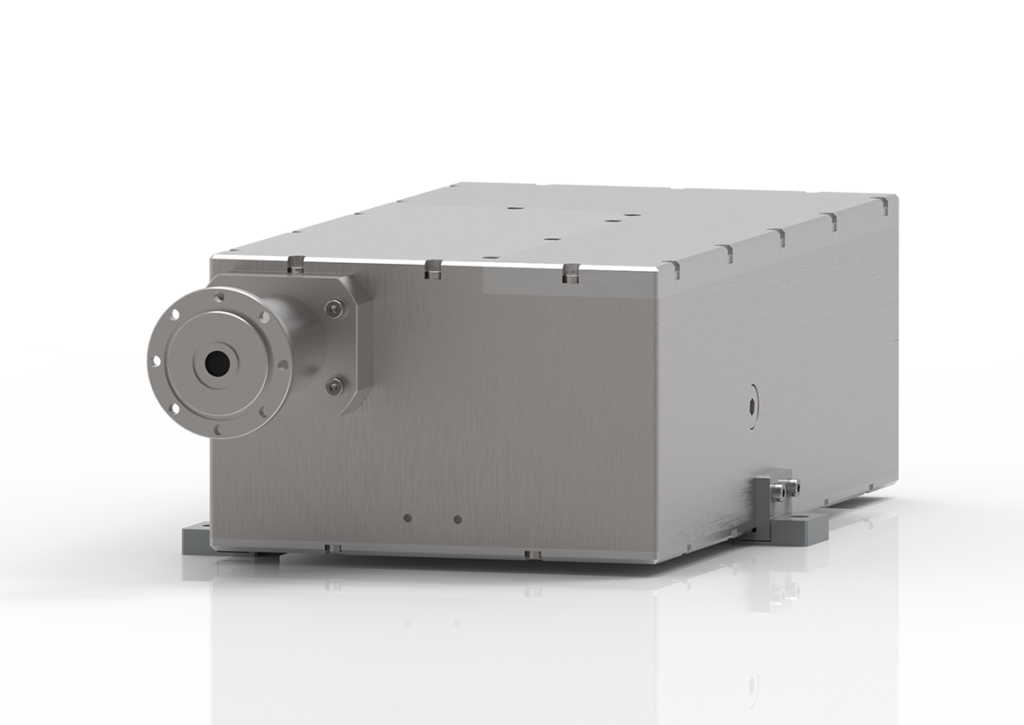

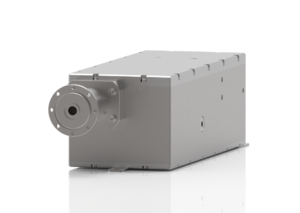

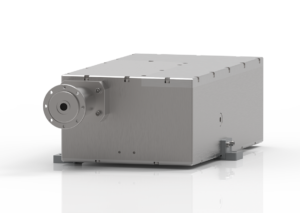

SEAL 355-10/15/20/30
SEAL 355-10/15/20/30
10-30W
The Seal 355-10/15/20/30 ultraviolet solid-state lasers adopt an integrated structural design, combining the optical path and external drive circuitry into a single unit, granting the product exceptional anti-interference capability. Both the optical and electrical systems feature a fully sealed architecture, ensuring reliable operation even in high-temperature, high-humidity environments. Additionally, the self-developed LBO motorized beam steering function guarantees long-term operational stability.
355nm Wavelength
10-30W Average Power
Water Cooled Cooling Method
ADVANTAGES
° Integrated opto-electrical design, EMI- resistant, one-button start
° Built-in air self-purification system
° Fully sealed structure, resistant to high-temperature and high-humidity environments
° Compact size, space-saving installation
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | Seal-355-10S | Seal-355-15S | Seal-355-20S | Seal-355-30S | Seal-355-10E | Seal-355-15E |
|---|---|---|---|---|---|---|---|
| Model | Seal-355-10S | Seal-355-15S | Seal-355-20S | Seal-355-30S | Seal-355-10E | Seal-355-15E | |
| Wavelength | nm | 355 | 355 | 355 | 355 | 355 | 355 |
| Average Power | W | >10W@60kHz | >15W@60kHz | >20W@60kHz | >30W@60kHz | >10W@60kHz | >15W@60kHz |
| Pulse Width | ns | <20ns@60kHz | |||||
| Frequency Range | kHz | 40kHz~300kHz | |||||
| Spatial Mode | TEM₀₀ | ||||||
| M² | ≤1.2 | ≤1.25 | |||||
| Beam Circularity | >90% | ||||||
| Beam Full Divergence Angle | mrad | ≤2 | <2.5 | ≤2 | |||
| Beam Diameter | mm | 0.55±0.15 | 0.6±0.15 | 0.8±0.15 | 0.8±0.15 | 0.45±0.15 | 0.45±0.15 |
| Polarization Ratio | >100:1 | ||||||
| Polarization Orientation | Horizontal | ||||||
| Average Power Stability | hr | RMS≤3%@24hr | RMS≤5%@24hr | RMS≤3%@24hr | |||
| Pulse-to-Pulse Stability | kHz | RMS≤3%@80kHz | RMS≤5%@60kHz | RMS≤5%@80kHz | |||
| Operating Temp.&RH | °C | 0~40; <80% | |||||
| Storage Temp.&RH | °C | -15~50; <90% | |||||
| Cooling Method | Water Cooled | ||||||
| Cooling Capacity Requirement | W | 500 | 1000 | 500 | |||
| Electricity Requirement | V | 36 (DC) | |||||
| Average Power Consumption | W | <250 | <400 | <600 | <600 | <250 | <280 |
| Dimensions (L×W×H) | mm | 290×180×114 | 325×180×114 | 400×205×124 | 303.5×120×105 | ||
| Laser Weight | kg | 8.8 | 9.8 | 15 | 6.8 | ||
