DPSS LASER

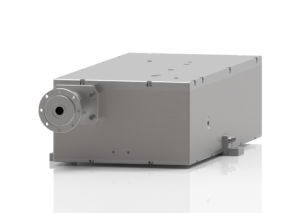

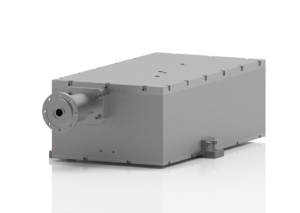

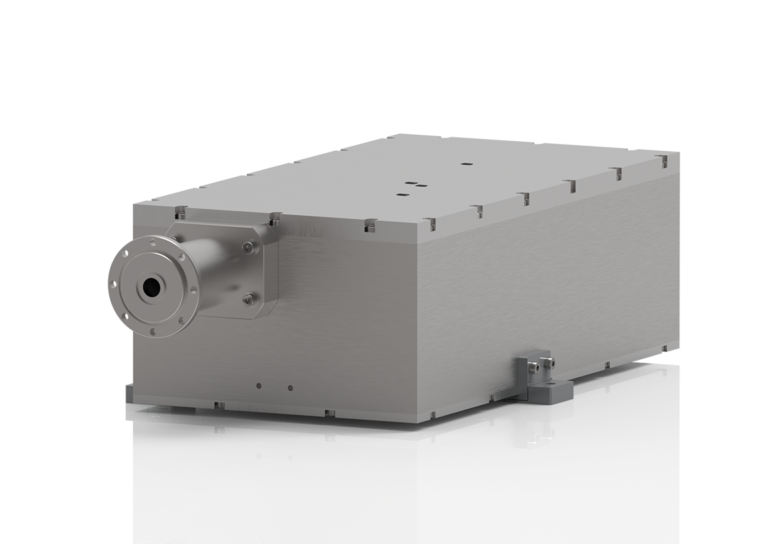

SEAL 532-7/10/20/30
SEAL 532-7/10/20/30
7-30W
SEAL 532 is the green laser model in this series, featuring exceptional beam quality and optimal spot characteristics. The laser system adopts a monolithic integrated design, combining both optical path and external drive circuitry into a single unit, which provides superior electromagnetic interference (EMI) resistance.The upgraded fully hermetic structure effectively prevents external particulate contamination while creating a moisture barrier that delivers outstanding humidity resistance, enabling the SEAL series to perform reliably in harsh industrial environments. Additionally, the incorporation of an internal self-cleaning system significantly extends the operational lifespan.
532nm Wavelength
7-30W Average Power
Water Cooled Cooling Method
ADVANTAGES
° Hermetically Sealed Enclosure Providing IP6X Dustproof and Moisture-Resistant Protection
° Integrated Optoelectronic System with EMI Shielding and One-Touch Operation
° Integrated Cavity Self-Purification Technology for Enhanced Operational Longevity
° Compact Footprint Design Optimizing Space Utilization in Industrial Integration
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | Seal-532-7 | Seal-532-10 | Seal-532-20 | Seal-532-30 |
|---|---|---|---|---|---|
| Model | Seal-532-7 | Seal-532-10 | Seal-532-20 | Seal-532-30 | |
| Wavelength | nm | 532 | |||
| Average Power | W | >7W@50kHz | >10W@50kHz | >20W@80kHz | >30W@80kHz |
| Pulse Width | ns | <18ns@50kHz | <18ns@80kHz | ||
| Frequency Range | kHz | 40~300 | |||
| Spatial Mode | TEM₀₀ | ||||
| M² | ≤1.2 | ||||
| Beam Circularity | >90% | ||||
| Beam Full Divergence Angle | mrad | ≤3.0 | ≤2.5 | ||
| Beam Diameter | mm | 0.6±0.15 | 0.7±0.15 | ||
| Polarization Ratio | >100:1 | ||||
| Polarization Orientation | Vertical | ||||
| Average Power Stability | hr | RMS≤3%@24hr | |||
| Pulse-to-Pulse Stability | kHz | RMS≤3%@40kHz | RMS≤3%@80kHz | ||
| Operating Temp.&RH | °C | 0~40; <80% | |||
| Storage Temp.&RH | °C | -15~50; <90% | |||
| Cooling Method | Water Cooled | ||||
| Cooling Capacity Requirement | W | 500 | 1000 | ||
| Electricity Requirement | V | 12 (DC) | 36 (DC) | ||
| Average Power Consumption | W | <200 | <250 | ||
| Dimensions (L×W×H) | mm | 290×180×114 | 325×180×114 | ||
| Laser Weight | kg | 8.7 | 9.8 | ||
