DPSS LASER
SEAL 355-3/5
SEAL 355-3/5
3-5W
The Seal-355-3SE & 5SE are newly upgraded models of ultraviolet solid-state lasers, featuring a monolithic structural design that integrates the optical path and external drive circuitry into a single unit. This design significantly enhances the electromagnetic interference (EMI) resistance of the series. Further optimized with a fully sealed enclosure, the lasers effectively prevent external dust ingress while also blocking moisture penetration, ensuring robust humidity resistance. These advancements enable the Seal series to operate reliably in harsh industrial environments.
355nm Wavelength
3-5W Average Power
Water Cooled Cooling Method
ADVANTAGES
° Integrated optoelectronic design, EMI-resistant, one- touch operation
° Fully sealed structure, dustproof & moisture-resistant
° Compact laser design, space-saving installation

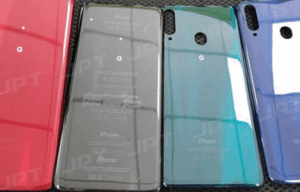

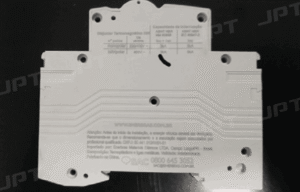

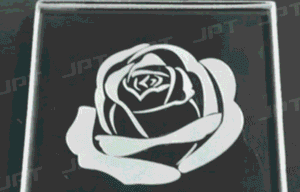

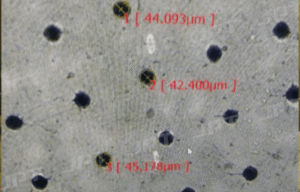

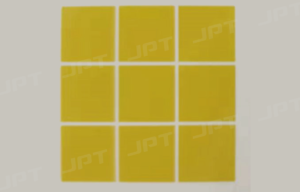

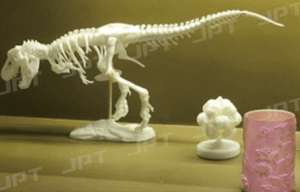

APPLICATIONS
SPECIFICATIONS
Parameter | Unit | Seal-355-3E | Seal-355-5E | Seal-355-3SE | Seal-355-5SE |
|---|---|---|---|---|---|
| Model | Seal-355-3E | Seal-355-5E | Seal-355-3SE | Seal-355-5SE | |
| Wavelength | nm | 355 | 355 | 355 | 355 |
| Average Power | W | >3W@30kHz | >5W@40kHz | >3W@30kHz | >5W@40kHz |
| Pulse Width | ns | <20ns@30kHz | <20ns@40kHz | <20ns@30kHz | <20ns@40kHz |
| Frequency Range | kHz | 20~200 | 20~200 | 20~200 | 20~200 |
| Spatial Mode | TEM₀₀ | TEM₀₀ | TEM₀₀ | TEM₀₀ | |
| M² | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | |
| Beam Circularity | >90% | >90% | >90% | >90% | |
| Beam Full Divergence Angle | mrad | ≤2 | ≤2 | ≤2 | ≤2 |
| Beam Diameter | mm | 0.55±0.15 | 0.55±0.15 | 0.55±0.15 | 0.55±0.15 |
| Polarization Ratio | >100:1 | >100:1 | >100:1 | >100:1 | |
| Polarization Orientation | Horizontal | Horizontal | Horizontal | Horizontal | |
| Average Power Stability | hr | RMS≤3%@24hr | RMS≤3%@24hr | RMS≤3%@24hr | RMS≤3%@24hr |
| Pulse-to-Pulse Stability | kHz | RMS≤3%@30kHz | RMS≤3%@40kHz | RMS≤3%@30kHz | RMS≤3%@40kHz |
| Operating Temp.&RH | °C | 0~40; <80% | 0~40; <80% | 0~40; <80% | 0~40; <80% |
| Storage Temp.&RH | °C | -15~50; <90% | -15~50; <90% | -15~50; <90% | -15~50; <90% |
| Cooling Method | Water Cooled | Water Cooled | Water Cooled | Water Cooled | |
| Cooling Capacity Requirement | W | 500 | 500 | 500 | 500 |
| Electricity Requirement | V | 12 (DC) | 12 (DC) | 12 (DC) | 12 (DC) |
| Average Power Consumption | W | <180 | <180 | <180 | <180 |
| Dimensions (L×W×H) | mm | 263×120×105 | 263×120×105 | 263×120×104.5 | 263×120×104.5 |
| Laser Weight | kg | 6.0 | 4.8 | 6.0 | 4.8 |
