SINGLE FIBER WOBBLE WELDING HEAD
Product Description:
Suitable for welding on thin plates and high counter materials.
Adopts motor-driven X/Y-axis lens with multiple wobble modes.
PRODUCT HIGHLIGHTS

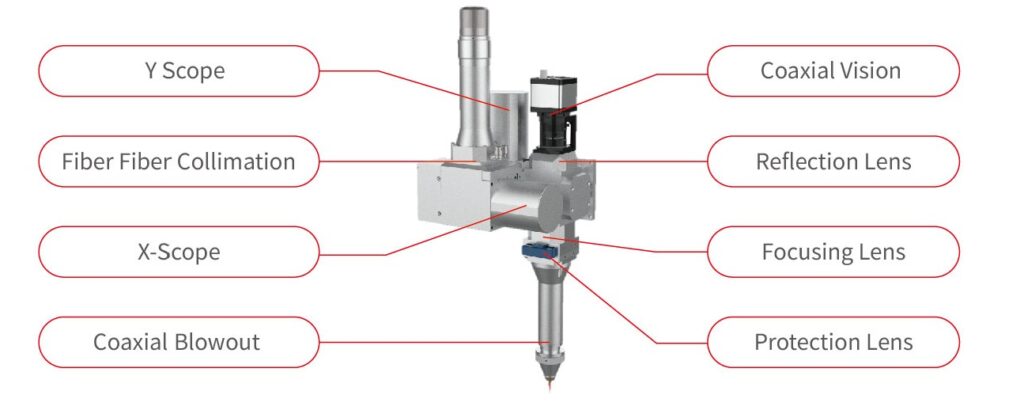

The internal structure of the welding head is completely sealed, which prevents the optical part from being contaminated by dust
Lens set indirect water cooling, reliable performance, can work stably for a long time, prolong service life
Equipped with coaxial blowout components to reduce welding fume and spatter residue contamination of the lens
With coaxial visual monitoring system, built-in blue coaxial light source
Modular design, protective lenses with drawer structure, easy to replace
Rich scanning graphics, continuous welding support circle, triangles, squares, straight lines, ellipses, etc
Support 4 groups of data. High frequency oscillation, support 0-700Hz scanning frequency
SPECIFICATIONS
| Laser Wavelength | 1070nm |
| Maximum Power | 4000W |
| Collimation | 100mm, 125mm, 150mm |
| Focusing | 150mm, 200mm, 250mm |
| Wobble Range | 0–5mm |
| Scanning Frequency | 0–700Hz |
| Cooling | Water |
| WPD | Selectable |
| Visual | Selectable |
| Size | 505×371×158mm |
| Weights | 4.8kg |
