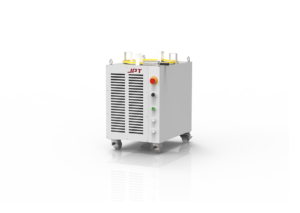

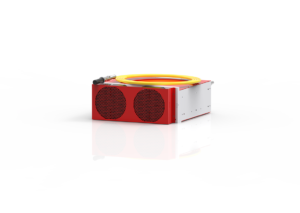

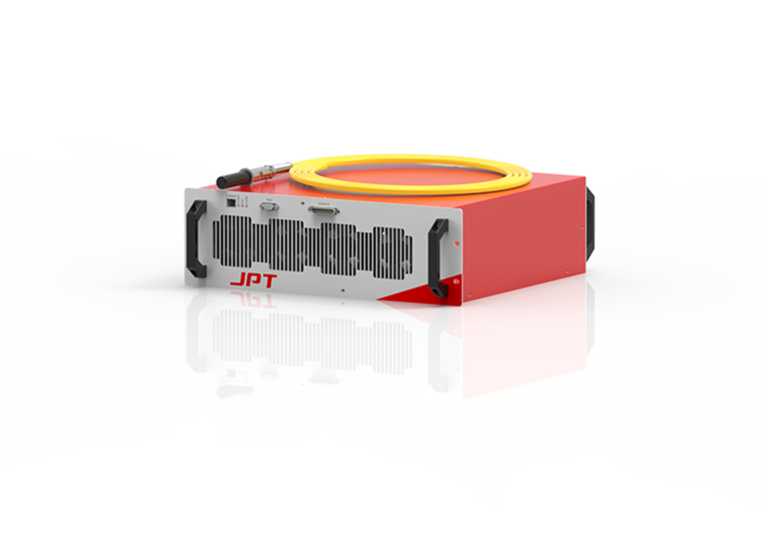

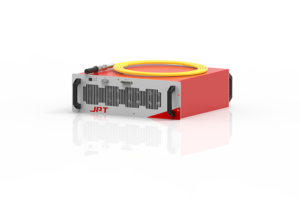

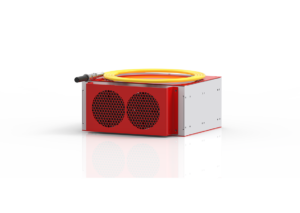

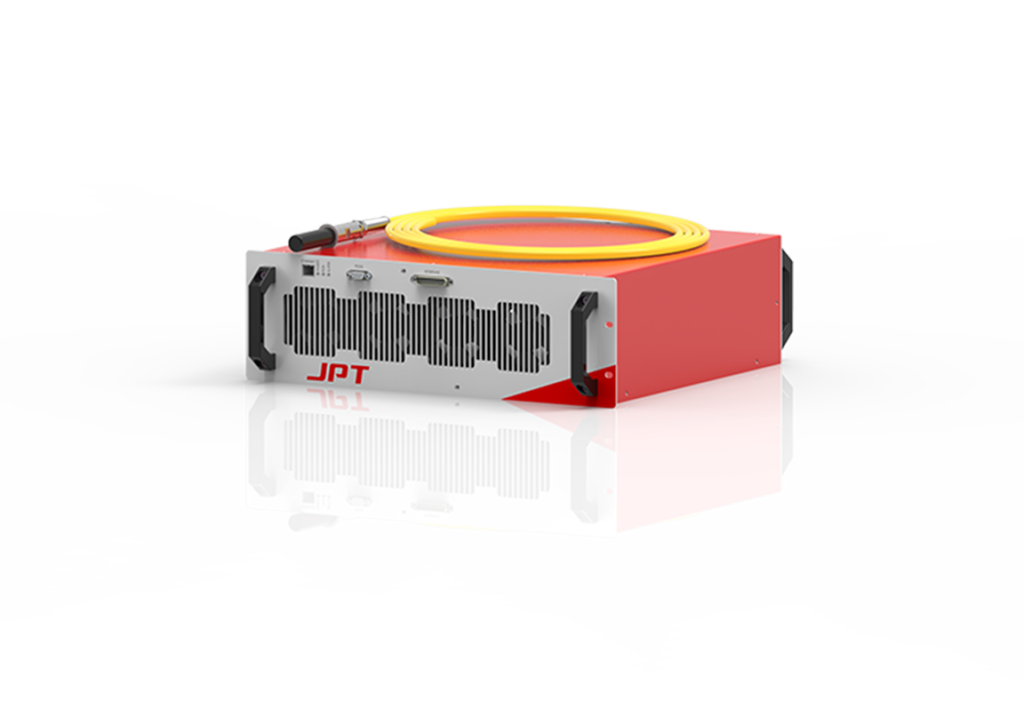

QCW Fiber Laser

QCW Fiber Laser

150/1500W-600/6000W

Quasi-Continuous Wave (QCW) Lasers offer significant advantages including high electro-optical conversion efficiency, compact design, maintenance-free operation, and flexible fiber-optic beam delivery, making them ideal light sources for industrial laser cutting, welding and other applications.

  • 0.01~50ms Adjustable Pulse Width
  • 6000W Peak Power (Max)
  • 10kHz Modulation Frequency

ADVANTAGES

° Editable Pulse Waveform

Flexible customization of pulse shapes and parameters to precisely match diverse processing requirements

° High Beam Quality

Superior beam characteristics enabling precise focusing and exceptional processing results

° Excellent Power Stability

Minimal output power fluctuation ensures consistent and repeatable processing performance

APPLICATIONS

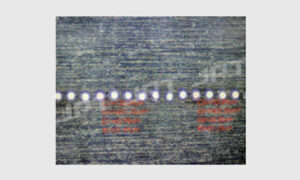

Ceramic Metal Drilling
Ceramic Metal Drilling

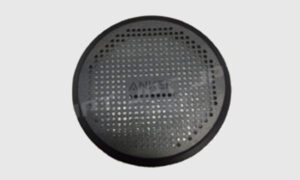

Metal Cutting
Metal Cutting

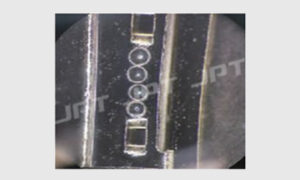

Precision Welding
Precision Welding

SPECIFICATIONS

Parameter
Unit
QCW-150/1500-L-A
QCW-300/3000-L-A
QCW-450/4500-L-A
QCW-600/6000-L-A
QCW-200/1000-L2-A
QCW-300/1500-L2-A
Product Model QCW-150/1500-L-AQCW-300/3000-L-AQCW-450/4500-L-AQCW-600/6000-L-AQCW-200/1000-L2-AQCW-300/1500-L2-A
Beam Parameter Productmm×mrad≤0.5 @20µm≤0.6 @25µm≤2 @50µm≤4 @100µm≤0.45 @14µm≤0.5 @20µm
Armored Cable Lengthm555555
Average Output PowerW150300450600100150
Maximum Power In Continuous ModeW250400450600200300
Peak PowerW150030004500600010001500
Maximum Pulse EnergyJ153045601015
Maximum Modulation FrequencykHz1010551010
Pulse Widthms0.01~100.01~100.01~100.01~100.01~100.01~10
Cooling Method Air CooledAir CooledAir CooledAir CooledAir CooledAir Cooled
Operating VoltageV48 (DC)48 (DC)48 (DC)220 (AC)48 (DC)48 (DC)
Maximum Power ConsumptionkW11.82.12.40.81.2
Central Wavelengthnm108010801080108010801080
Spectrum Width @3dBnm<6<6<6<6<6<6
Operating Temperature Range°C10~4010~4010~4010~4010~4010~40
Laser Weightkg26.538421211517
Dimensions (L×W×H)mm486×483×148561×483×148561×483×148603×435×715257×288×129.5407.5×397.8×154
