POWER MONITORING COMPENSATION MODULE

PRODUCT DESCRIPTION

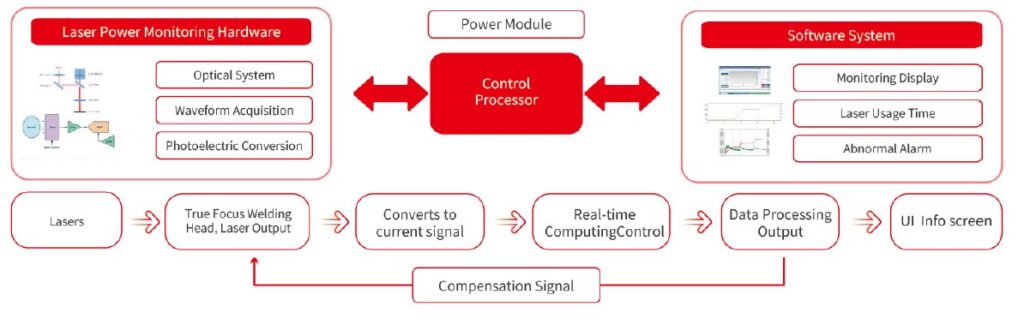

Laser power monitoring and compensation technology is a real-time power acquisition and measurement of the output terminal part of the
laser processing head by means of photoelectric sensors, and the collected laser power signals are fed back to the laser control system and real-time compensation of the laser output power is carried out. Unlike the traditional internal feedback of the laser, the power monitoring and compensation technology can compensate for the power degradation caused by the loss of the components of the overall welding system, and maintain the long-term stability of the power.

PRODUCT HIGHLIGHTS

  • The first in China to perform power monitoring and compensation for MOPA laser welding systems

  • Module can monitor power compensation for MOPA, QCW, CW lasers

  • Hundreds of laser process waveforms can be preset to meet the

    different combinations of laser welding parameters

  • Self-developed laser waveform editing, power acquisition software,

    flexible customization of functions

SPECIFICATIONS

LaserMOPA, QCW, CW
ModeContinuous / Pulsed Laser
PowerUnlimited
Stability±2%
Frequency500kHz
Control Output0–10V
Emission Time≥1ms
Response Time≤50µs
