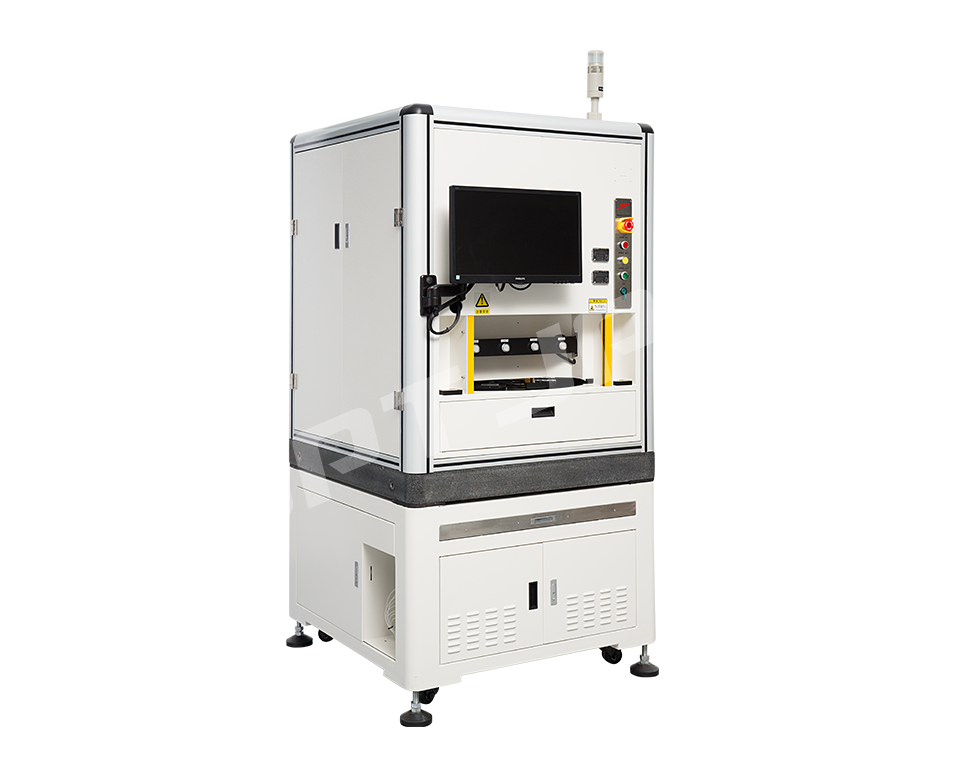

HiPA-TT Light Transmittance Tester
Short cycle time with UPH = 720 Tunable beam size and spot distribution to facilitate testings of different samples User-friendly UI design simple to operate Customizable FOM, high-speed data-processing, real-time key parameters monitoring Additional functions available for quick integration: Barcode Reading / High Precision Visual Positioning / Auto Loading & Unloading / Temperature-control Module
This tester is used to measure the light transmittance of transparent materials. It measures the difference in spectral energy distributions before and after the beam passes through the sample, and then compares the two to get the transmittance of the sample at different wavelengths.
Model | Testing Wavelength | Sample Dimension (Diagonal Scale) | Beam Diameter | Positioning Repeatability | Visual Positional Accuracy | Cycle Time | Maintenance |
HiPA – TT | 400nm – 1600nm * | 5mm – 800mm * | 0.5mm – 10mm * | ± 0.5μm | ± 1μm | UPH 720 (With 3 Testing Locations) | Audit box available for wavelength calibration, transmittance and reflectance calibration |
