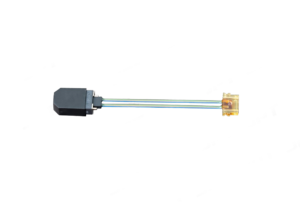

MT-Jumper
MT-Jumper
MT-jumper is mainly used for a parallel optical technology module (QSFP) which connects the internal optical lens and external port to meet the signal transmission of the optical module. By miniaturization, high precision and customized design, MT-jumper solves the contradiction between the limited space inside the high-speed optical module and the high-density wiring.
- ≤0.35dB Insertion Loss
- SM APC≥60dB Return Loss
PRODUCT FEATURES
° Comply with IEC-61754-7, GR-468-CORE, ROHS
° Quick insertion and withdraw, easy to operate
° Low insertion loss and high return loss
PRODUCT APPLICATIONS
SPECIFICATIONS
| Product Model | MT-Jumper | MT-Jumper | MT-Jumper | MT-Jumper |
| Test Items | SM (APC) | SM (APC) | MM (PC) | MM (PC) |
| Insertion Loss | Standard: ≤0.70dB | Elite / Low: ≤0.35dB | Standard: ≤0.50dB | Elite / Low: ≤0.35dB |
| Return Loss | ≥60dB | ≥60dB | ≥20dB | ≥20dB |
| Durability | ≥200 times | ≥200 times | ≥200 times | ≥200 times |
| Operating Temperature (°C) | -25 ~ +70°C | -25 ~ +70°C | -25 ~ +70°C | -25 ~ +70°C |
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm | 850nm / 1300nm |
