MPO/MTP Trunk Cable Assembly

MPO/MTP Trunk Cable Assembly

MPO/MTP cable assembly use MTP® or MPO multi-fiber connectors to provide a high-density solution. Based on single ferrule MT technology, the MPO cable assemblies provide up to 72 fiber connections in a single point, saving the space and reducing cable management troubles, while providing the same bandwidth capacity of a multi-fiber cable with individual fiber connector terminations per cable. It is suitable for telecom, data center, datacom, used to connect within cabinet, or connectivity between of longer building, and interconnect MPO cassettes of SFP module.

JPT MPO/MTP cable assemblies comply with IEC61754, IEC61755, GR1435, TIA568 standards, and adopts a push-pull locking structure with male and female heads to ensure butt tightness and low loss.

  • ≤0.35dB Insertion Loss
  • SM≥60dB, MM≥20dB Return Loss

PRODUCT FEATURES

° Quick insertion and withdraw, easy to operate

° High cabling density, can provide 12 to 144 core fiber connection, saving cabling space

° Low insertion loss and high return loss

° Comply with IEC-61754-7, GR-1435-CORE, ROHS

APPLICATIONS

Long-haul Telecommunications
Long-haul Telecommunications
Telecommunications Systems
Telecommunications Systems

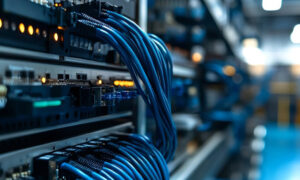

CATV Systems
CATV Systems

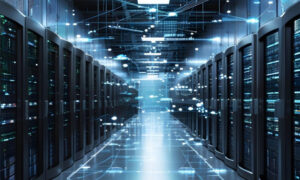

Testing Facilities
Testing Facilities

SPECIFICATIONS

Product Model MPO/MTP Trunk Cable Assembly MPO/MTP Trunk Cable Assembly MPO/MTP Trunk Cable Assembly MPO/MTP Trunk Cable Assembly
Test Items SM SM MM MM
Insertion Loss Standard: ≤0.70dB Elite / Low: ≤0.35dB Standard: ≤0.50dB Elite / Low: ≤0.35dB
Return Loss ≥60dB ≥60dB ≥20dB ≥20dB
Durability ≥200 times ≥200 times ≥200 times ≥200 times
Operating Temperature (°C) -25 ~ +70°C -25 ~ +70°C -25 ~ +70°C -25 ~ +70°C
Test Wavelength 1310nm / 1550nm 1310nm / 1550nm 850nm / 1300nm 850nm / 1300nm
