MPO/MTP Harness Cables
MPO/MTP Harness Cables

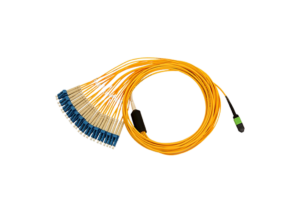

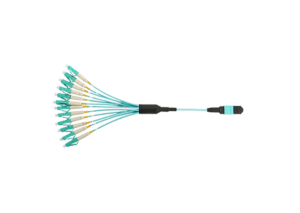

MPO/MTP harness cables are a kind of MTP®/MPO fanout harness cable with one MTP®/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, it is designed to connect the trunk cable output to the distribution frame system.
JPT MPO/MTP harness cables comply with IEC61754, IEC61755, GR1435, TIA568 standards, and adopts a push-pull locking structure with male and female heads to ensure butt tightness and low loss.
- ≤0.35dB Insertion Loss
- SM≥60dB, MM≥20dB Return Loss
PRODUCT FEATURES
° Connect the trunk cable output to the distribution frame system
° 4, 8,12,16, 24 cores available
° The branch connector can be LC, SC, FC, ST, etc
° Comply with IEC-61754- 7, GR-1435-CORE, ROHS
APPLICATIONS
SPECIFICATIONS
| Product Model | MPO/MTP Harness Cables | MPO/MTP Harness Cables | MPO/MTP Harness Cables | MPO/MTP Harness Cables |
|---|---|---|---|---|
| Connector Type | MPO | MPO | MPO | MPO |
| Test Items | SM | SM | MM | MM |
| Insertion Loss | Standard: ≤0.70dB | Elite / Low: ≤0.35dB | Standard: ≤0.50dB | Elite / Low: ≤0.35dB |
| Return Loss | ≥60dB | ≥60dB | ≥20dB | ≥20dB |
| Durability | ≥200 times | ≥200 times | ≥200 times | ≥200 times |
| Operating Temperature (°C) | -25 ~ +70°C | -25 ~ +70°C | -25 ~ +70°C | -25 ~ +70°C |
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm | 850nm / 1300nm |
