MOPA FIBER LASER

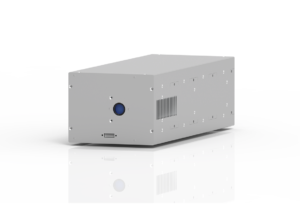

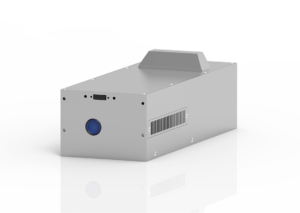

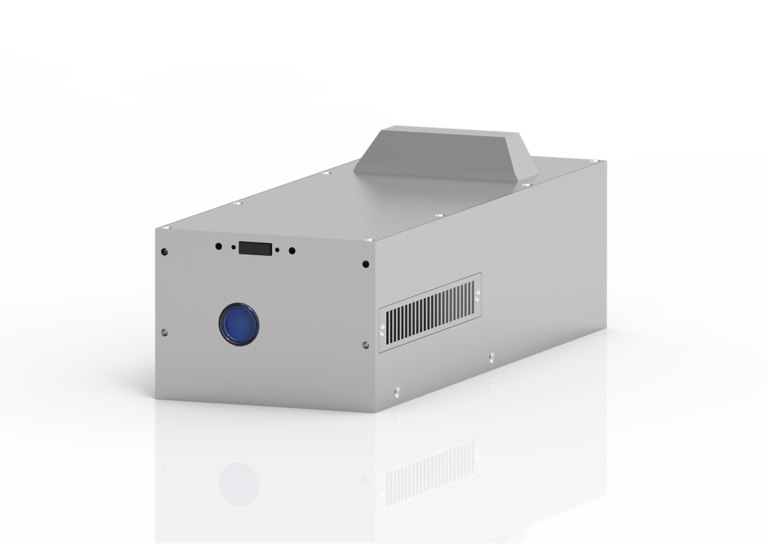

M8 20-50W
M8 20-50W
The JPT M8 series laser adopts a Master Oscillator Power Amplifier (MOPA) architecture, supporting independent adjustment of pulse width and pulse frequency. Building upon the performance of its predecessors, the M8 series has been specifically optimized for pulse peak power and beam quality, delivering exceptional beam characteristics even under high-power operation. With a maximum peak power exceeding 100kW, this series is particularly suitable for demanding applications such as glass drilling, where both high peak power and brightness are critical requirements.
50kw High Peak Power
<1.4 Excellent Beam Quality
4mJ Maximum pulse energy
ADVANTAGES
HIGH PEAK POWER
Excellent Beam Quality
Compact Integrated Design
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | YDFLP-20-M8-S-R | YDFLP-50-M8-M-R |
|---|---|---|---|
| Product Model | YDFLP-20-M8-S-R | YDFLP-50-M8-M-R | |
| M² | <1.4 | <1.4 | |
| Nominal Average Output Power | W | 20 | 50 |
| Maximum Pulse Energy | mJ | 1.1 | 4 |
| Pulse Repetition Rate Range | kHz | 1~4000 | 1~4000 |
| Pulse Width | ns | 1~350 | 1~350 |
| Output Power Instability | % | <5 | <5 |
| Cooling Method | Air Cooled | Air Cooled | |
| Operating Voltage | V | 100~240 (AC) | 24 (DC) |
| Nominal Power Consumption | W | 90 | 190 |
| Supply Power Demand | W | ≥90 | ≥250 |
| Central Emission Wavelength | nm | 1064 | 1064 |
| Emission Bandwidth @3dB | nm | <15 | <15 |
| Output Beam Diameter | mm | 7.0±1.0 | 7.0±1.0 |
| Output Power Tuning Range | % | 0~100 | 0~100 |
| Operating Temperature | °C | 0~40 | 0~40 |
| Laser Weight | kg | 2.7 | 4 |
| Dimensions (L×W×H) | mm | 272×105×76.2 | 337×130×100 |
