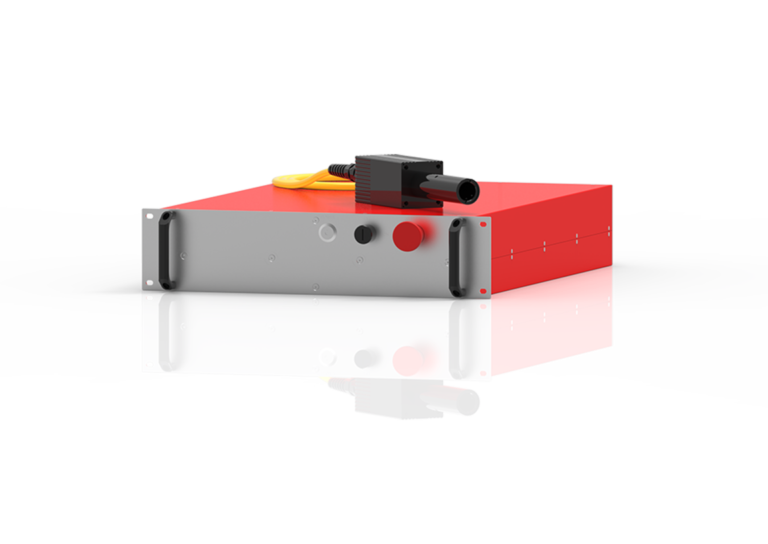

MOPA FIBER LASER
M7 500-1000W
M7 500-1000
JPT M7 Series is a high-power fiber laser adopting the Master Oscillator Power Amplifier (MOPA) configuration with a directly electrically modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control. Compared to Q-switched fiber lasers, MOPA fiber lasers allow independent control of pulse frequency and pulse width. By adjusting these two key laser parameters, they achieve consistent high peak power output and broader compatibility with various marking substrates. Moreover, MOPA technology makes possible what Q-switched lasers cannot—higher output power, giving it a distinct advantage in high-speed marking applications.
- 1000W Maximum average power.
- 500W models available with air-cooling or water-cooling options.
- 1064nm Central emission wavelength.
ADVANTAGES
° Independently adjustable pulse width & frequency.
° Compact design for easy integration.
° High reliability.
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | YDFLP-500-M7-M-R-A | YDFLP-500-M7-M-R-W | YDFLP-1000-M7-L-R-W |
|---|---|---|---|---|
| Product Model | YDFLP-500-M7-M-R-A | YDFLP-500-M7-M-R-W | YDFLP-1000-M7-L-R-W | |
| M² | <1.7 | <1.7 | <1.8 | |
| Armored Cable Length | m | 5 | 5 | 5 |
| Nominal Average Output Power | W | 500 | 500 | 1000 |
| Maximum Pulse Energy | mJ | 1.5 | 2 | 1.66 |
| Pulse Repetition Rate Range | kHz | 1~4000 | 1~4000 | 1~4000 |
| Pulse Width | ns | 30~500 | 30~500 | 60~500 |
| Output Power Instability | % | <5 | <5 | <5 |
| Cooling Method | Air Cooled | Water Cooled | Water Cooled | |
| Operating Voltage | V | 48 (DC) | 48 (DC) | 220 (AC) |
| Nominal Power Consumption | W | 1800 | 1500 | 3000 |
| Supply Power Demand | W | ≥2500 | ≥2000 | ≥3000 |
| Central Emission Wavelength | nm | 1064 | 1064 | 1064 |
| Emission Bandwidth @3dB | nm | <20 | <20 | <20 |
| Output Beam Diameter | mm | 7.0±1.0 | 7.0±1.0 | 7.0±1.0 |
| Output Power Tuning Range | % | 0~100 | 0~100 | 0~100 |
| Operating Temperature | °C | 10~40 | 10~40 | 10~40 |
| Laser Weight | kg | 16.5 | 19.8 | 40 |
| Dimensions (L×W×H) | mm | 412×313×135 | 482×470×70 | 598×483×140 |
