INTELLIGENT GALVANOMETER WELDING HEAD

PRODUCT DESCRIPTION

The product is fully verified, with strict customization and testing of optical components, and long time stable work under 8kw power. The product adopts imported high-precision motor with various wobble modes, which significantly improves the welding quality and speed.

PRODUCT HIGHLIGHTS

  • Adopt closed-loop control, real-time monitoring of galvanometer position status

  • Adopting imported high-precision motors and high-power vibration lenses to ensure the reliability and stability of the welding head

  • Scanner internal with a number of alarm functions: power abnormal alarm, communication abnormalalarm, motor wire loose alarm, temperature alarm, scanner position deviation alarm

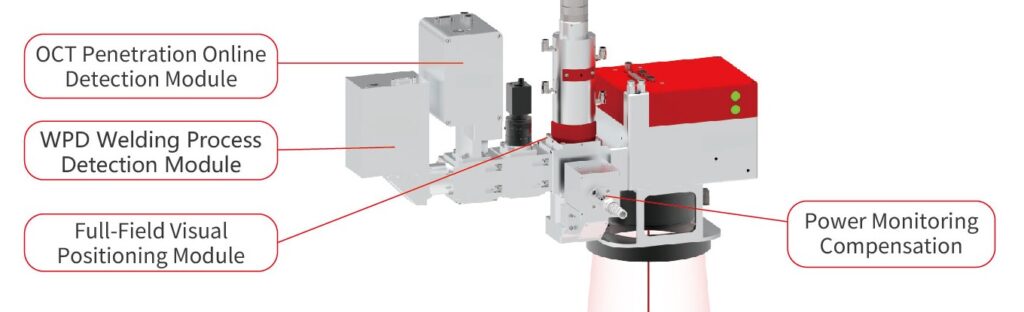

  • Can be equipped with self-developed modules for in-weld detection and coaxial power monitoring

  • The collimation module adopts cam structure to adjust focus precisely and conveniently, with a focusrange of ±3mm.

  • Rich scanning graphics, continuous welding supports circle, figure of 8, triangle, square, straight line,ellipse, etc

  • The internal structure of the welding head is completely sealed to prevent dust contamination of the optics

  • Equipped with an air knife component to minimize contamination of the lens by welding fumes andspatter residue

SPECIFICATIONS

Wavelength1060–1090nm
Max Power4000 / 8000W
Collimation100mm / 125mm / 150mm / 200mm
Focal Length254mm / 330mm / 350mm / 420mm
Incident Spot30mm
Scanning Angle±11°
Repeatability Accuracy<6µrad
Positional Drift<6µrad/K
Long-term Drift<100µrad
Operating Temperature25±10°C
Weights15kg
