HYBRID WOBBLE WELDING HEAD

PRODUCT DESCRIPTION

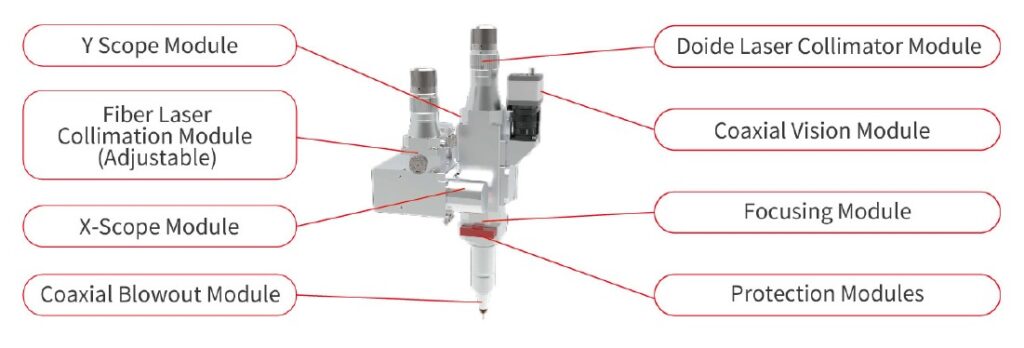

Using 976nm/1070nm dual wavelength laser composite welding, suitable for welding on medium-thin plates and high counter materials. Adopts motor-driven X/Y axis oscillating lens with multiple wobble modes to significantly improve welding quality and speed.

PRODUCT HIGHLIGHTS

  • Adopt closed-loop control, real-time monitoring of galvanometer position status

  • Adopting imported high-precision motors and high-power vibration lenses to ensure the reliability and stability of the welding head

  • Scanner internal with a number of alarm functions: power abnormal alarm, communication abnormal alarm, motor wire loose alarm, temperature alarm, scanner position deviation alarm.

  • Can be equipped with self-developed modules for in-weld detection and coaxial power monitoring

  • The collimation module adopts cam structure to adjust focus precisely and conveniently, with a focus range of ±3mm

  • Rich scanning graphics, continuous welding supports circle, figure of 8, triangle, square, straight line, ellipse, etc

  • With protective lens state imaging detection, early warning, to avoid welding bad products, improve product yields

  • Equipped with an air knife component to minimize contamination of the lens by welding fumes and spatter residue

SPECIFICATIONS

Wavelength976nm / 1070nm
Max Power4000W / 2000W
Collimation Distance100mm / 125mm / 150mm
Focus Distance200mm
Range0–5mm
Frequency0–1024Hz
CoolingWater Cooling
Welding MonitoringSelectable
Visual MonitoringSelectable
Overall Dimensions502×198×168mm
Weights6.2kg
