HYBRID WELDING HEAD

PRODUCT DESCRIPTION

Adopting 976nm/1070nm dual wavelength laser composite welding, suitable for welding on thin plates
and high counter materials. Self-developed, compact and lightweight structure, flexible and customizable.

PRODUCT HIGHLIGHTS

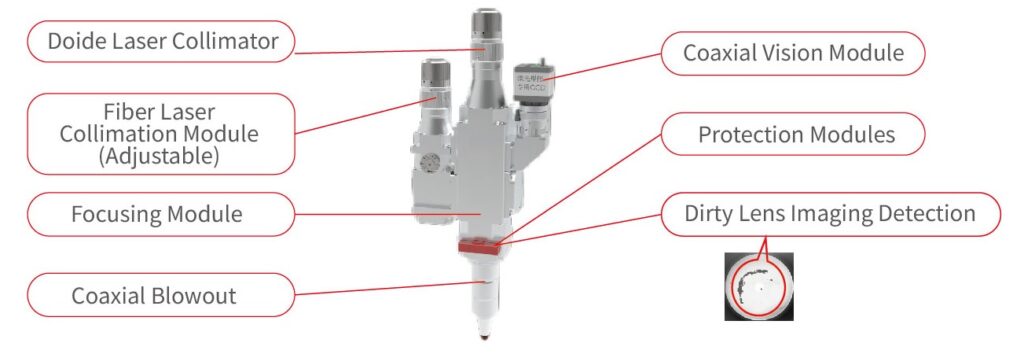

  • The internal structure of the welding head is completely sealed, preventing the optical components from being contaminated by dust

  • The lens is equipped with indirect water cooling, ensuring reliable performance and long-term stable operation, thus extending its lifespan

  • Equipped with coaxial blowing/gas knife components to reduce contamination of the lens by welding fumes and spatter residues

  • The optical fiber uses a cam structure for focusing, which is precise and convenient, with a focusing range of ±3mm.

  • Equipped with a coaxial visual monitoring system and an integrated blue light coaxial light source Equipped with protective lens status imaging detection for early warning to prevent welding damage and improve product yield.

SPECIFICATIONS

Wavelength976nm / 1070nm
Max Power4000W
Collimation Distance100mm / 125mm / 150mm
Focus Distance200mm
Cooling WayWater Cooling
Monitoring SystemSelectable
Visual MonitoringSelectable
Overall Dimensions470×196×112mm
Weights5kg
