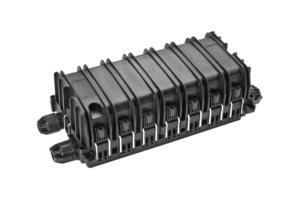

Horizontal Fiber Optic Closure JFOC08-5801

Horizontal Fiber Optic Closure JFOC08-5801

JFOC08-5801 type of fiber optic closure is designed for connection and protection of fiber cables. It is made from high quality engineering plastic. This model has 2 inlet ports and 2 outlet ports, suitable for aerial, pipe line, manhole application.

  • IP68 Protection Grade
  • 576 Max Cores Capacity

PRODUCT FEATURES

° Mechanical seal for the box with good sealing performance, easy for operation

° Protection grade: IP68

° Applicable for both bundle cable and ribbon cable

° Tighten screws and gaskets are all made of 304 stainless steel, to improve the anti- corrosion performance

° Installation method: aerial, pipe line, manhole, etc

APPLICATIONS

LAN & CATV NETWORKS
LAN & CATV NETWORKS
OPTICAL FIBER SENSING
OPTICAL FIBER SENSING
TELECOMMUNICATIONS NETWORK
TELECOMMUNICATIONS NETWORK
OPTICAL CABLE NETWORK SYSTEM
OPTICAL CABLE NETWORK SYSTEM

SPECIFICATIONS

Product Model

JFOC08-5801

Size520×200×159mm
MaterialABS
Splice Tray6 tray
CapacityBundle cable: 288F
Ribbon cable: 576F
Cable Port4 port
