HIGH POWER GALVANOMETER WELDING HEAD

PRODUCT DESCRIPTION

The product is fully verified, with strict customization and testing of optical components, and long time stable work under 6kw power. Various wobble modes, which significantly improves the welding quality and speed.

PRODUCT HIGHLIGHTS

  • Adopting closed-loop control, real-time monitoring of the status of the galvanometer position

  • Adopting high-precision motor and high-power vibration lens to ensure the reliability and stability of the welding head

  • Has several alarm functions: Abnormal power supply alarm, abnormal communication alarm, temperature alarm, alarm for deviation of galvanometer position.

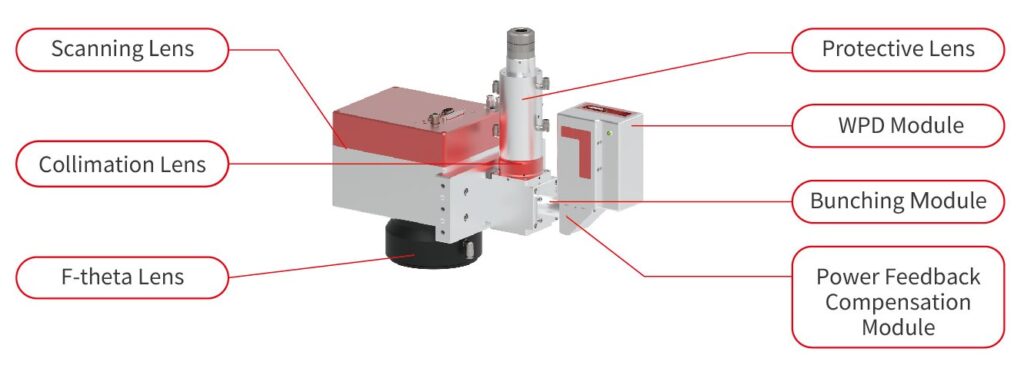

  • Can be equipped with self-developed welding monitoring modules and coaxial power feedback compensation modules

  • The collimation module adopts cam structure to adjust the focus, precise and convenient adjustment, focus range ±3mm

  • Various scanning modes, continuous welding support circle, triangles, squares, straight lines, ellipses, etc

  • The internal structure of the welding head is completely sealed, which prevents the optical part from being contaminated by dust

SPECIFICATIONS

Laser Wavelength1060–1090nm
Maximum Power6000W
Collimation100mm / 125mm / 150mm / 200mm
Focusing254mm / 330mm / 350mm / 420mm
Entrance Pupil Diameter30mm
Scanning Angle±11°
Repeatability<6µrad
Positional Drift<6µrad/K
Long-term Drift<100µrad
Temperature25±10°C
Weights15kg
