GR SERIES

GR 70-150W

GR 70-150W

The JPT GR series laser adopts a Master Oscillator Power Amplifier (MOPA) configuration, supporting independent adjustment of pulse width and pulse frequency. Building upon the flexible parameter control of MOPA lasers, it incorporates external cavity frequency doubling technology to deliver high-power green laser output. This system is particularly suitable for: Copper welding applications, Photovoltaic processing, Precision marking.

  • 150W Maximum average power

  • 532nm Center wavelength

  • 10-250ns Adjustable pulse width

ADVANTAGES

  • Adjustable pulse width & frequency.

  • High pulse energy.

  • High beam quality.

  • Water-cooled design for enhanced stability.

APPLICATIONS

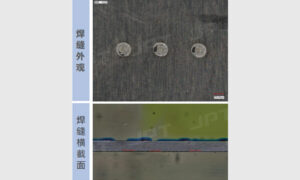

Aluminum Welding
Aluminum Welding

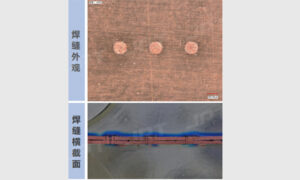

Copper Welding
Copper Welding

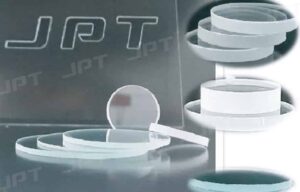

Glass Drilling
Glass Drilling

SPECIFICATIONS

Parameter
Unit
YDFLP-GR-70
YDFLP-GR-100
YDFLP-GR-120
YDFLP-GR-150
Product Model YDFLP-GR-70YDFLP-GR-100YDFLP-GR-120YDFLP-GR-150
M² <1.2<1.2<1.4<1.4
Armored Cable Lengthm3333
Nominal Average Output PowerW70100120150
Maximum Pulse EnergyµJ400400400400
Pulse Repetition Rate RangekHz1~40001~40001~40001~4000
Pulse Widthns1.5×1-3burst or 10-2501.5×1-3burst or 10-2501.5×1-3burst or 10-2501.5×1-3burst or 10-250
Output Power Instability%<5<5<5<5
Cooling Method Water CooledWater CooledWater CooledWater Cooled
Operating VoltageV48 (DC)48 (DC)48 (DC)48 (DC)
Nominal Power ConsumptionW400560650800
Supply Power DemandW≥450≥600≥700≥850
Central Emission Wavelengthnm532532532532
Emission Bandwidth @3dBnm<2<2<2<2
Output Power Tuning Range%0~1000~1000~1000~100
Operating Temperature°C10~4010~4010~4010~40
Host Machine Weightkg10101010
Output Head Weightkg5555
Host Machine Dimensions (L×W×H)mm450×235×84450×235×84450×235×84450×235×84
Output Head Dimensions (L×W×H)mm160×300×67160×300×67160×300×67160×300×67
