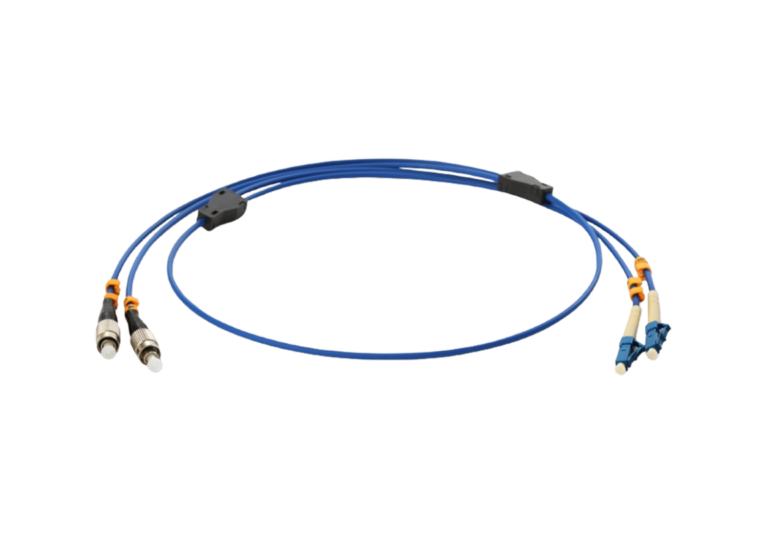

FC-LC Fiber Optic Patchcord
FC-LC Fiber Optic Patchcord
Fiber patchcord is a fiber cable that has fiber connectors terminated on one or both two ends, providing interconnect and cross-connect of applications over installations in telecommunication system, data centers, FTTx, LAN and WAN system. As a professional fiber optic patchcord manufacturer, JPT provides all types of fiber patchcord assemblies with various types of fiber connectors including LC, SC, ST, FC, MU, MTRJ, E2000, SN, CS, etc.
- ≤0.30dB Insertion Loss
- SM APC≥60dB Return Loss
PRODUCT FEATURES
° UPC, APC, polishing available
° Low insertion loss and high return loss
° Available for single mode/multimode and simplex/duplex
° 0.9mm, 2.0mm, 3.0mm diameter cable available
° LC/FC/SC/ST/E2000/MU connector available
° Comply with IEC and GR-326-CORE
PRODUCT APPLICATIONS
SPECIFICATIONS
| Product Model | FC-LC Fiber Optic Patchcord | FC-LC Fiber Optic Patchcord | FC-LC Fiber Optic Patchcord |
| Fiber Mode | SM (G652D / G657A1 / G657A2 / G657B) | SM (G652D / G657A1 / G657A2 / G657B) | MM (OM1 / OM2 / OM3 / OM4 / OM5) |
| Diameter (mm) | 0.9mm / 1.6mm / 2.0mm / 3.0mm | 0.9mm / 1.6mm / 2.0mm / 3.0mm | 0.9mm / 1.6mm / 2.0mm / 3.0mm |
| End-face Finishing | UPC | APC | PC |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥50 | ≥60 | ≥35 |
| Exchangeability (dB) | ≤0.20 | ≤0.20 | ≤0.20 |
| Repeatability (dB) | ≤0.20 | ≤0.20 | ≤0.20 |
| Operating Temperature (°C) | -25 ~ +70°C | -25 ~ +70°C | -25 ~ +70°C |
| Operating Wavelength (nm) | 1310, 1550 | 1310, 1550 | 850, 1300 |
| Cable Material | PVC, LSZH, OFNP, OFNR | PVC, LSZH, OFNP, OFNR | PVC, LSZH, OFNP, OFNR |
