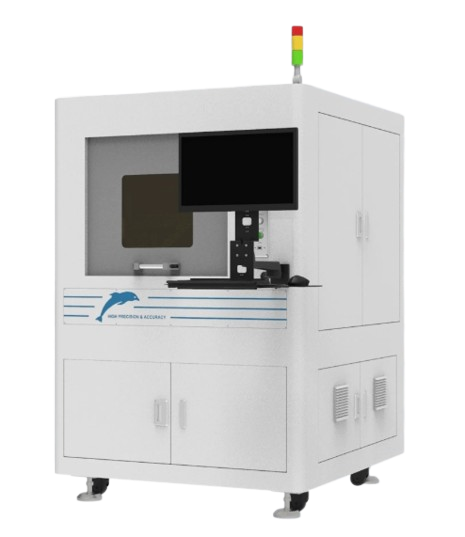

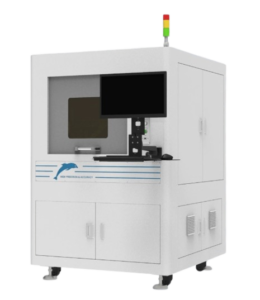

Standard Drilling Machine
- Creative
- Customizable
- Adaptive
Product Description
- Green light nanosecond laser is used for high drilling efficiency and quality.
VIDEO
ADVANTAGES
1. High precision and fast scanning galva. Small heat affected area;
2. No contact processing, no consumables, low operating cost, maintenance free;
3. High precision servo module to ensure machining accuracy. Equipped with stable platform and large processing area;
4. Taper free for side wall, smooth edge and minimized chipping.
SPECIFICATIONS
UPH | Positioning Accuracy | Drilling Accuracy | Laser Spot | Laser Power | Chipping Size | Machine Dimensions |
Custom designed | ＜5μm | ±10μm | Φ<20μm | 30W | ＜100μm | 900×1000×1700mm |
SOLUTIONS
Application Effects
Sapphire glass, mobile phone home button, camera protection lens, watch cover glass, sapphire substrate, silicon carbide wafer, display panel drilling and cutting.
