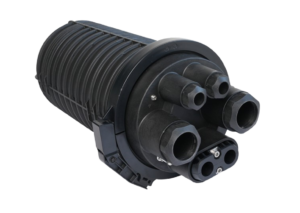

Dome Fiber Optic Closure JFOC09-5801
Dome Fiber Optic Closure JFOC09-5801
JFOC09-5801 type of fiber optic closure is designed for connection and protection of fiber cables. This model can be installed with 10 splice trays with large capacity. The closure is made of excellent performance of materials. The internal fastener is made of high quality of stainless steel, which strengths the product durability.
- IP68 Protection Grade
- 720 Max Cores Capacity
PRODUCT FEATURES
° Mechanical seal for the box and cable ports, with good sealing performance, easy for operation
° Protection grade: IP68
° Splice trays are all tightly fixed by black buckle when splicing
° Applicable for both bundle cable and ribbon cable
° Installation method: wall mounting, pole mounting, direct buried, etc
APPLICATIONS
SPECIFICATIONS
Product Model | JFOC09-5801 |
| Size | 475×Φ260 mm |
| Material | PP+GF |
| Splice Tray | 10 tray |
| Max. Capacity | Bundle cable: Ribbon cable: 720F |
| Cable Port | 1 oval port + 4 round port |
