Direct Semiconductor Laser
Direct Semiconductor Laser
2000-3000W
Semiconductor Fiber-Coupled Laser Systems represent high-efficiency, compact laser solutions that deliver superior performance, flexibility and reliability. These systems serve as essential tools in modern laser technology and are ideal for metal surface heat treatment applications and other industrial processes.
915/976nm Central Wavelength
20kHz Modulation Frequency
15000W Peak Power
ADVANTAGES
° High Electro-Optic Conversion Efficiency
Delivers superior energy utilization, significantly reducing operational power consumption and running costs
° Flat-Top Beam Output
Provides uniform spot energy distribution for more consistent and precise processing results
° Maintenance-Free Operation
Excellent environmental adaptability with high output stability for long- term reliable performance

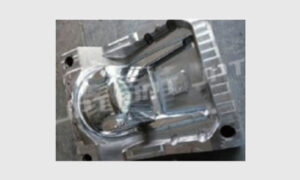

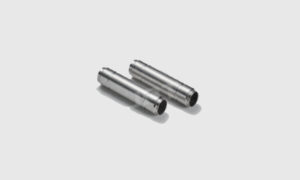

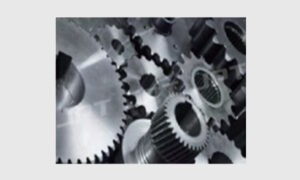

APPLICATIONS
SPECIFICATIONS
Parameter | Unit | DL-2000-L-W | DL-3000-L-W |
|---|---|---|---|
| Product Model | DL-2000-L-W | DL-3000-L-W | |
| Beam Parameter Product | mm×mrad | ≤30 @400µm | ≤40 @600µm |
| Armored Cable Length | m | 10 | 10 |
| Average Output power | W | 2000 | 3000 |
| Maximum Modulation Frequency | kHz | 20 | 20 |
| Cooling Method | Water Cooled | Water Cooled | |
| Operating Voltage | V | 220 (AC) | 380 (AC) |
| Maximum Power Consumption | kW | 5 | 7 |
| Central Emission Wavelength | nm | 915/976 | 915/976 |
| Spectral Width @3dB | nm | <6 | <6 |
| Operating Temperature | °C | 10~40 | 10~40 |
| Laser Weight | kg | 27 | 31 |
| Dimensions (L×W×H) | mm | 575×482×105 | 575×482×105 |
