CW RACK 500-6000W

500W

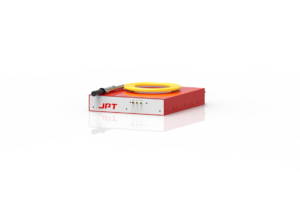

1000-1200W

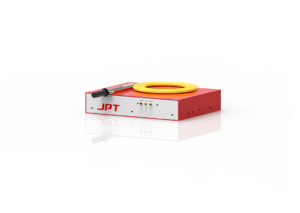

2000W

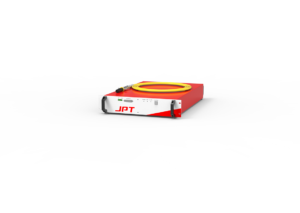

3000-4000W

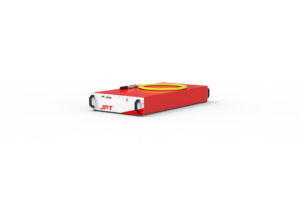

5000W

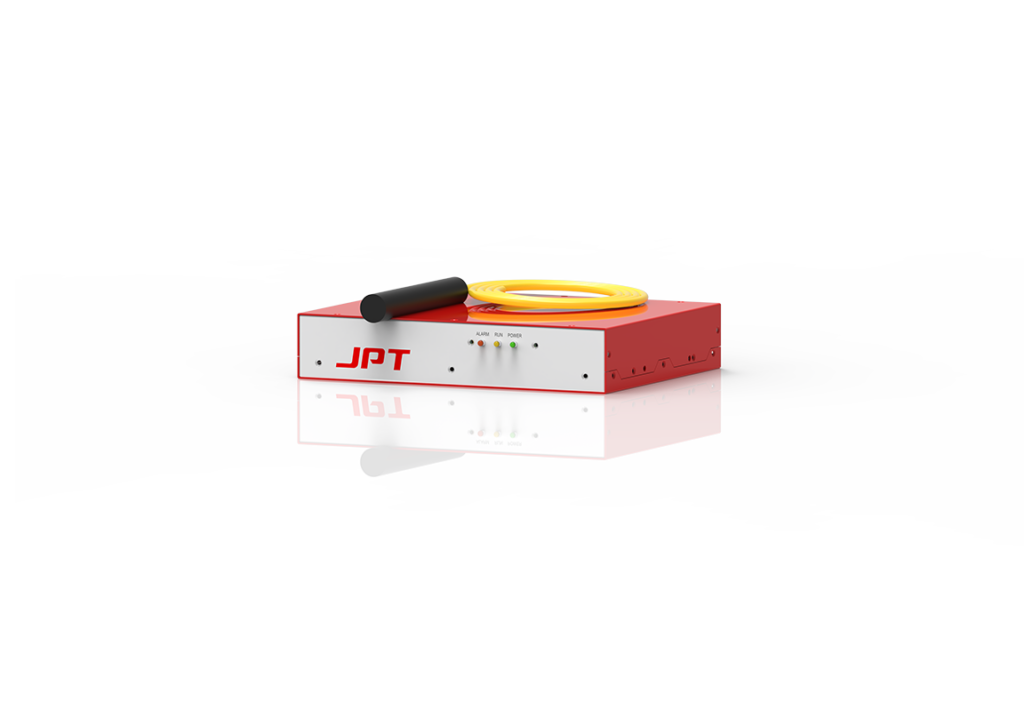

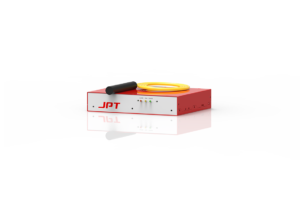

CW Rack 500-6000W

500-6000W

Continuous Wave Single-Module Water-Cooled Laser is a fiber laser that delivers continuous output, featuring high beam quality, high power, high efficiency, and exceptional reliability. It serves as an ideal light source for industrial cutting, welding, and other applications.

  • 6000W Peak Power (Max)

  • 7kg Minimum laser weight

  • 20kHz Modulation Frequency

ADVANTAGES

° Compact Design

Space-saving dimensions for easy system integration

° High Reliability

Ensures stable continuous operation with minimal maintenance requirements

° Exceptional Beam Quality

Delivers superior processing efficiency and precision for high-quality manufacturing

APPLICATIONS

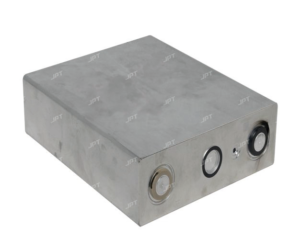

Lithium Battery Welding
Lithium Battery Welding

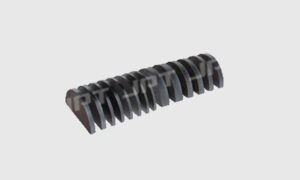

Carbon Steel Cutting
Carbon Steel Cutting

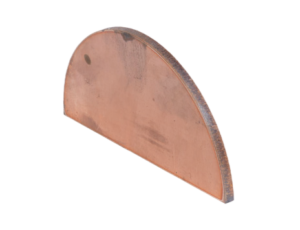

High-reflection Material Cutting
High-reflection Material Cutting

SPECIFICATION

Parameter
Unit
YDFLC-500-L2-W
YDFLC-1000-L2-W
YDFLC-1200-L2-W
YDFLC-2000-L-W
YDFLC-3000-L-W
YDFLC-4000-L-W
YDFLC-6000-L2-W
Product Model YDFLC-500-L2-WYDFLC-1000-L2-WYDFLC-1200-L2-WYDFLC-2000-L-WYDFLC-3000-L-WYDFLC-4000-L-WYDFLC-6000-L2-W
Beam Parameter Productmm×mrad≤0.45 @14µm≤0.45 @14µm<2 @50µm<2 @50µm<2 @50µm<2 @50µm≤4 @100µm
Armored Cable Lengthm581515151515
Average output powerW500100012002000300040006000
Maximum Modulation FrequencykHz1010102020205
Cooling Method Water CooledWater CooledWater CooledWater CooledWater CooledWater CooledWater Cooled
Operating VoltageV48 (DC)58 (DC)220 (AC)220 (AC)380 (AC)380 (AC)380 (AC)
Maximum Power ConsumptionkW1.833.5691218
Central Emission Wavelengthnm1080108010801080108010801080
Spectral Width @3dBnm<6<6<6<6<6<6<6
Operating Temperature°C10~4010~4010~4010~4010~4010~4010~40
Laser Weightkg773141436666
Dimensions (L×W×H)mm230×290×56230×290×56575×462×105742×482×105742×482×105934×482×127.5934×482×127.5
