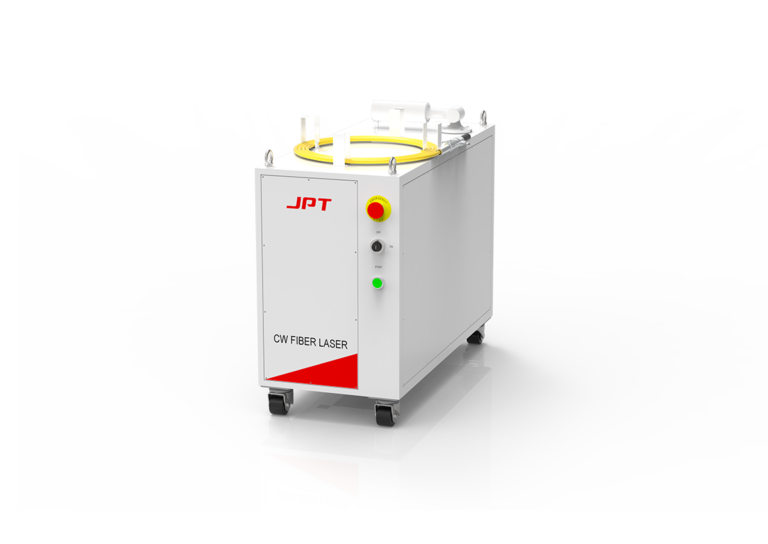

CW CABINET 6-20kW
CW Cabinet 6-20kW
6000-20000W
Continuous Wave Multi-Module Lasers have become essential tools for industrial processing and additive manufacturing applications, offering high peak power, superior efficiency, and exceptional reliability – making them ideally suited for various high-power processing scenarios.
±2% Power Stability
20000W Power Output
1080nm Central Wavelength
ADVANTAGES

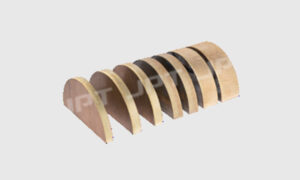

° High-Reflective Material Resistance
Effectively suppresses back- reflected light damage, suitable for processing various highly reflective materials
° Modular Design for Easy Maintenance
Modular components enable quick troubleshooting and replacement
° High Power Stability
Minimal output power fluctuation ensures consistent and repeatable processing performance

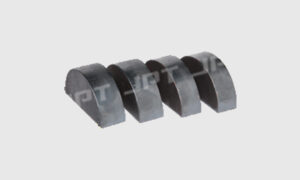

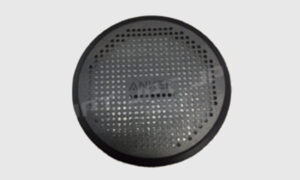

APPLICATIONS
SPECIFICATIONS

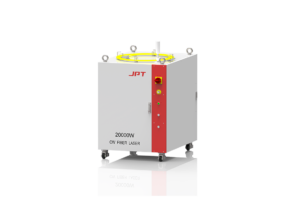

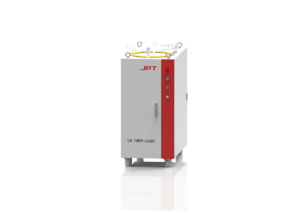

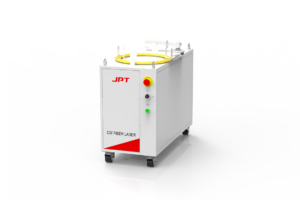

Parameter | Unit | YDFLC-6000-X-W | YDFLC-8000-L-W | YDFLC-12000-L-W | YDFLC-20000-L-W |
|---|---|---|---|---|---|
| Product Model | YDFLC-6000-X-W | YDFLC-8000-L-W | YDFLC-12000-L-W | YDFLC-20000-L-W | |
| Beam Parameter Product | mm×mrad | ≤4 @100µm | ≤4 @100µm | ≤7 @150µm | ≤7 @150µm |
| Armored Cable Length | m | 15 | 15 | 20 | 20 |
| Average output power | W | 6000 | 8000 | 12000 | 20000 |
| Maximum Modulation Frequency | kHz | 5 | 5 | 5 | 5 |
| Cooling Method | Water Cooled | Water Cooled | Water Cooled | Water Cooled | |
| Operating Voltage | V | 380 (AC) | 380 (AC) | 380 (AC) | 380 (AC) |
| Maximum Power Consumption | kW | 20 | 27 | 40 | 66 |
| Central Emission Wavelength | nm | 1080 | 1080 | 1080 | 1080 |
| Spectral Width @3dB | nm | <6 | <6 | <6 | <6 |
| Operating Temperature | °C | 10~40 | 10~40 | 10~40 | 10~40 |
| Laser Weight | kg | 123 | 250 | 350 | 600 |
| Dimensions (L×W×H) | mm | 999×370×709 | 1120×674×797 | 1253×600×1337 | 1250×935×1140 |
