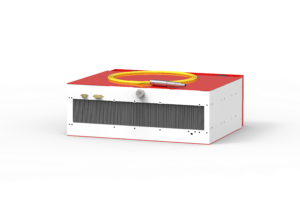

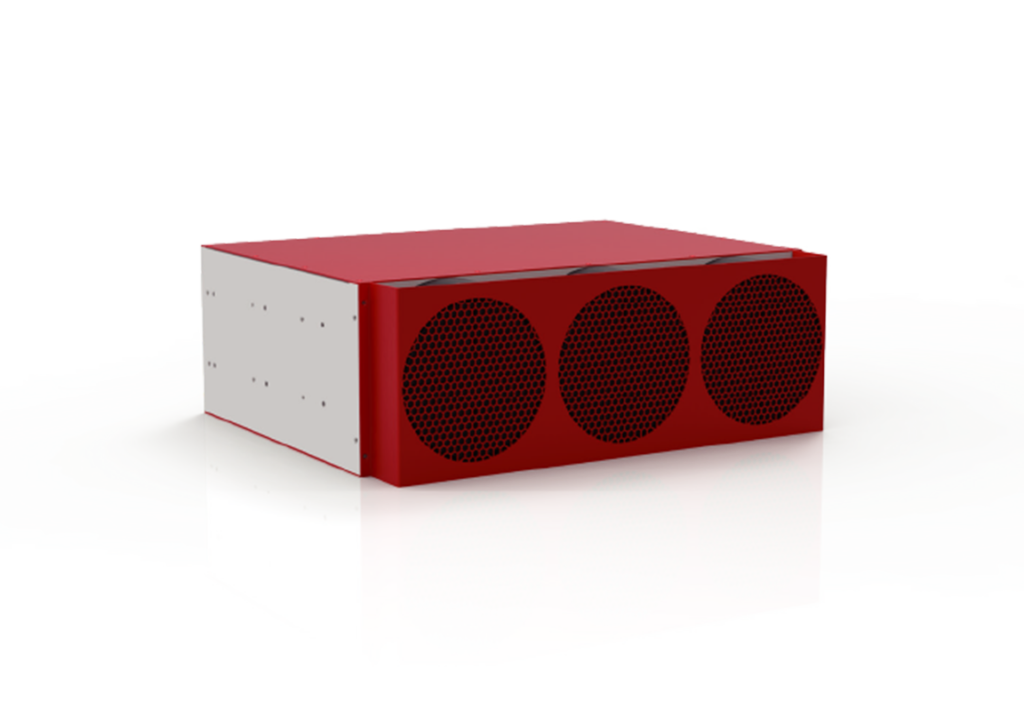

CW AIR COOLED 800-2000W
CW Air Cooled 800-2000W
800-2000W
Continuous Wave Single-Module Air-Cooled Laser integrates advanced air-cooling technology to deliver highly efficient and stable continuous laser output. With superior beam quality, portability and low maintenance requirements, it is the ideal solution for handheld laser welding applications, particularly suited for small workshops, field operations and precision welding scenarios.
2000W Peak Power (Max)
<1.5 Beam Quality (M²)
Air Cooled Cooling Method
ADVANTAGES
° Compact Structure
Lightweight design for easy portability and mobility
° High Reliability
Ensures stable long-term operation
with reduced maintenance costs
° Superior Beam Quality
Delivers higher processing efficiency and excellent machining quality for precision manufacturing applications
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | YDFLC-800-L-A | YDFLC-1500-L-A | YDFLC-2000-L-A |
|---|---|---|---|---|
| Product Model | YDFLC-800-L-A | YDFLC-1500-L-A | YDFLC-2000-L-A | |
| M² | <1.3 | <1.3 | <1.4 | |
| Armored Cable Length | m | 5 | 5 | 5 |
| Average output power | W | 800 | 1500 | 2000 |
| Maximum Modulation Frequency | kHz | 10 | 10 | 10 |
| Cooling Method | Air Cooled | Air Cooled | Air Cooled | |
| Operating Voltage | V | 60 (DC) | 118 (DC) | 88 (DC) |
| Maximum Power Consumption | kW | 2.7 | 5 | 7 |
| Central Emission Wavelength | nm | 1080 | 1080 | 1080 |
| Spectral Width @3dB | nm | <5 | <5 | <5 |
| Operating Temperature | °C | -10~40 | -10~40 | -10~40 |
| Laser Weight | kg | 15 | 17 | 25 |
| Dimensions (L×W×H) | mm | 257×288×129.5 | 405.5×397.8×154 | 405.5×497.8×176 |
