CL SERIES

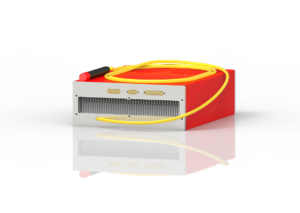

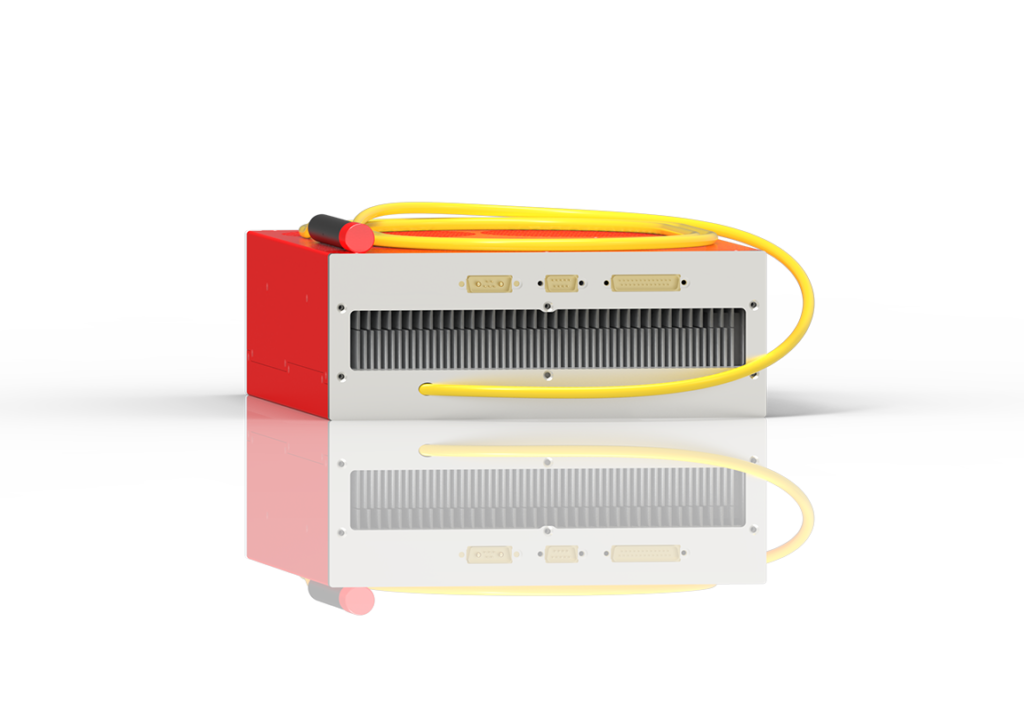

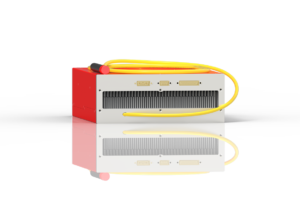

CL2 Air Cooled 200-300W
CL2 Air Cooled 200-300W
The JPT CL series is a high-power fiber laser system based on the Master Oscillator Power Amplifier (MOPA) configuration, utilizing a direct-electrically-modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control capabilities. Compared to conventional Q-switched fiber lasers, the MOPA fiber laser provides independent control of pulse frequency and pulse width. Through optimized adjustment of these two key laser parameters, it achieves stable high peak power output and broader compatibility with various marking substrates. The CL water-cooled series employs a power beam combining solution, offering high pulse energy and uniform energy distribution across the output beam spot. This makes it an ideal and highly efficient light source for laser cleaning applications.
3kinds optional beam modes
QCS head output
1064nm Central emission wavelength
PRODUCT ADVANTAGES
o Flexible Pulse Parameters
° Lightweight High-Power Design
° Single/Multi-Mode Options Available
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | YDFLP-CI-2-200-1-A | YDFLP-CI-2-300-1-A | YDFLP-CI-2-200-5-A | YDFLP-CI-2-300-5-A | YDFLP-CI-2-300-10-A |
|---|---|---|---|---|---|---|
Product Model | YDFLP-CI-2-200-1-A | YDFLP-CI-2-300-1-A | YDFLP-CI-2-200-5-A | YDFLP-CI-2-300-5-A | YDFLP-CI-2-300-10-A | |
| M² | <1.5 | <1.5 | <5 | <5 | <12 | |
| Armored Cable Length | m | 5 | 5 | 5 | 5 | 5 |
| Nominal Average Output Power | W | 200 | 300 | 200 | 300 | 300 |
| Maximum Pulse Energy | mJ | 2 | 2 | 5 | 5 | 15 |
| Pulse Repetition Rate Range | kHz | 1~3000 | 1~3000 | 1~3000 | 1~3000 | 1~3000 |
| Pulse Width | ns | 13~500 | 13~500 | 13~500 | 13~500 | 13~500 |
| Output Power Instability | % | <5 | <5 | <5 | <5 | <5 |
| Cooling Method | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled | |
| Operating Voltage | V | 48 (DC) | 48 (DC) | 48 (DC) | 48 (DC) | 48 (DC) |
| Nominal Power Consumption | W | 680 | 1050 | 680 | 1050 | 1050 |
| Supply Power Demand | W | ≥800 | ≥1200 | ≥800 | ≥1200 | ≥1200 |
| Central Emission Wavelength | nm | 1064 | 1064 | 1064 | 1064 | 1064 |
| Emission Bandwidth @3dB | nm | <15 | <15 | <15 | <15 | <15 |
| Output Beam Diameter | mm | 6.0±1.0 | 6.0±1.0 | 7.0±1.0 | 7.0±1.0 | 7.0±1.0 |
| Output Power Tuning Range | % | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 |
| Operating Temperature | °C | 0~40 | 0~40 | 0~40 | 0~40 | 0~40 |
| Laser Weight | kg | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Dimensions (L×W×H) | mm | 340×265×100 | 340×265×100 | 340×265×100 | 340×265×100 | 340×265×100 |
