CL SERIES

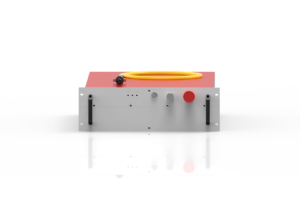

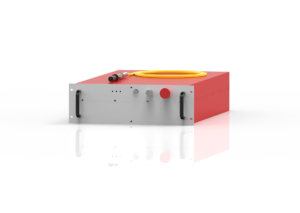

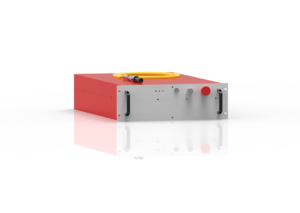

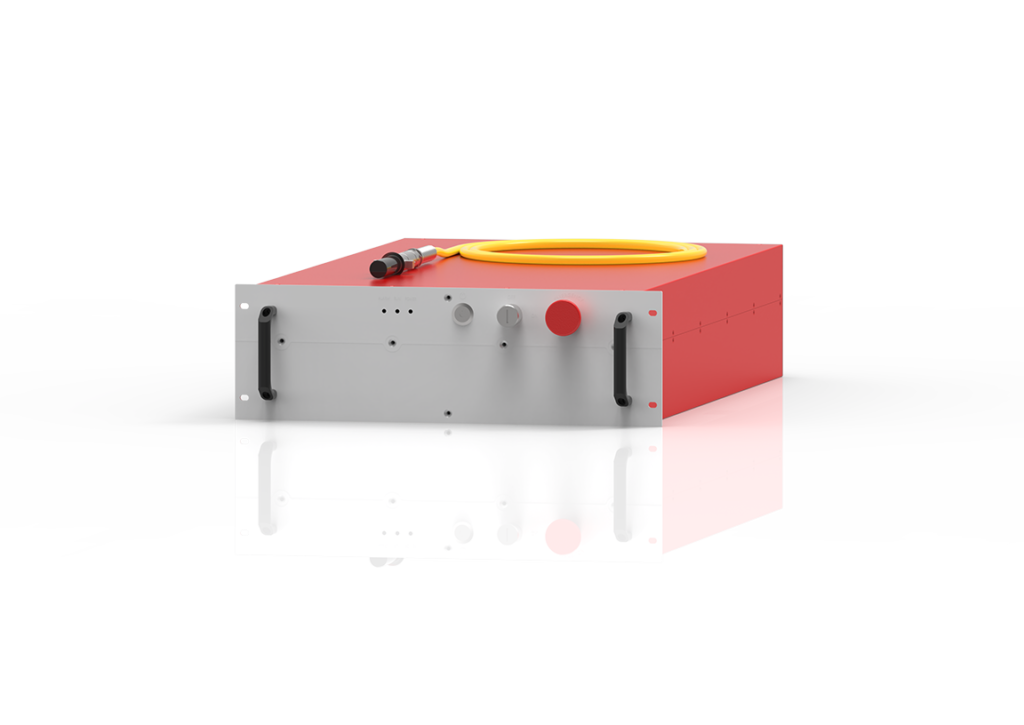

CL Water Cooled 2000W
CL Water Cooled 2000W
The JPT CL series is a high-power fiber laser system based on the Master Oscillator Power Amplifier (MOPA) configuration, utilizing a direct-electrically-modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control capabilities.Compared to conventional Q-switched fiber lasers, the MOPA fiber laser provides independent control of pulse frequency and pulse width. Through optimized adjustment of these two key laser parameters, it achieves stable high peak power output and broader compatibility with various marking substrates.The CL water-cooled series employs a power beam combining solution, offering high pulse energy and uniform energy distribution across the output beam spot. This makes it an ideal and highly efficient light source for laser cleaning applications.
2000W Maximum average power
Water Cooled Cooling Method
3 optional beam modes
ADVANTAGES
o Flexible Pulse Parameters
° Lightweight High-Power Design
° Single/Multi-Mode Options Available
APPLICATIONS
SPECIFICATIONS
Parameter | Unit | YDFLP-CL-2000-15-W | YDFLP-CL-2000-50-W | YDFLP-CL-2000-100-W |
|---|---|---|---|---|
| Product Model | YDFLP-CL-2000-15-W | YDFLP-CL-2000-50-W | YDFLP-CL-2000-100-W | |
| Beam Parameter Product | mm×mrad | <4.5 | <10 | <25 |
| Armored Cable Length | m | 10 | 10 | 10 |
| Nominal Average Output Power | W | 2000 | 2000 | 2000 |
| Maximum Pulse Energy | mJ | 15 | 50 | 100 |
| Pulse Repetition Rate Range | kHz | 1~4000 | 1~4000 | 10~100 |
| Pulse Width | ns | 30~500 | 30~500 | RR20kHz@100ns Pmax |
| Output Power Instability | % | <5 | <5 | <5 |
| Cooling Method | Water Cooled | Water Cooled | Water Cooled | |
| Operating Voltage | V | 380 (AC) | 380 (AC) | 380 (AC) |
| Nominal Power Consumption | W | 6500 | 6500 | 6500 |
| Supply Power Demand | W | ≥6500 | ≥6500 | ≥6500 |
| Central Emission Wavelength | nm | 1064 | 1064 | 1064 |
| Emission Bandwidth @3dB | nm | <15 | <15 | <15 |
| Output Power Tuning Range | % | 0~100 | 0~100 | 0~100 |
| Operating Temperature | °C | 0~40 | 0~40 | 0~40 |
| Laser Weight | kg | 53.9 | 53.9 | 53.9 |
| Dimensions (L×W×H) | mm | 801×483×150 | 801×483×150 | 801×483×150 |
