BASIC LASER MACHINES

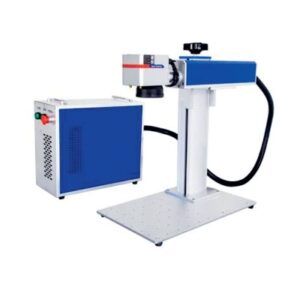

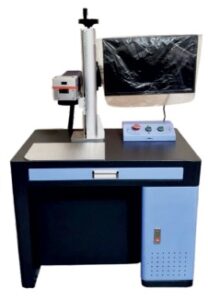

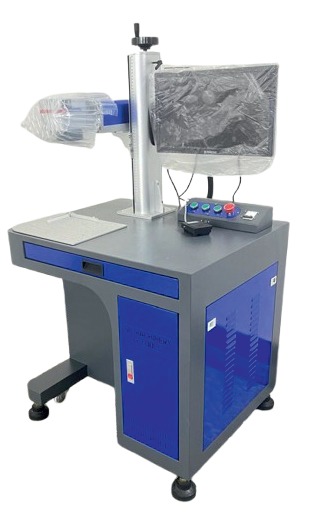

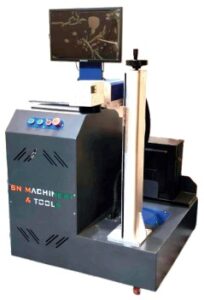

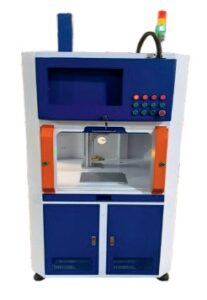

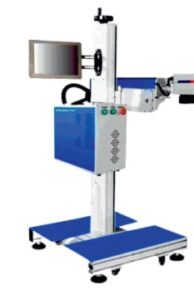

Fiber Laser Marking Machine
- The Fiber Laser Marking Machine from Zensia Systems India Pvt. Ltd. is a high-precision industrial marking solution designed for permanent, high-speed engraving on a wide range of materials. It uses advanced Galvano scanning technology and a red semiconductor guide laser for accurate positioning and consistent marking quality. Available in multiple power variants — 20W, 30W, 50W, and 100W — it supports marking fields of 100×100 mm up to 300×300 mm and delivers a fine minimum line width of 0.03 mm for detailed marking.
- The system supports multiple data formats such as DXF, BMP, JPEG, AI, SVG, and PLT and is compatible with standard barcodes and 2D codes including QR Code, Data Matrix, and PDF417. It runs on Windows 7 and Windows 10 using EzCad software and operates within an ambient temperature range of 0°C–40°C.
- Designed with forced-air cooling and efficient power consumption (≤700 VA), the machine ensures reliable continuous operation in industrial environments.
ADVANTAGES
Industrial & Manufacturing
Metal part identification and traceability
Tool and die marking
Automotive components
Machine parts and serial number engraving
Electronics & Electrical
PCB marking
Connector and component labeling
QR codes for tracking and authentication
Jewelry & Precision Goods
Marking on gold, silver, and alloy metals
Decorative engraving
Branding and personalization
Packaging & Plastics
ABS, nylon, polycarbonate, and polyethylene marking
Plastic product coding and batch identification
APPLICATIONS
Recommended use of a dust collector
Depending on the object being marked. harmful gasses or smoke that have a detrimental effect on the human body or the laser marker may be generating during marking. If your application falls under this description. use a dust collector.
Safety standards for laser beam products
A laser beam can harm human being’s eyes. skin, etc., because of its high energy density. IEC has classified laser products according to the degree of hazard and the stipulated safety requirements. The LP- V series are classified as Class 4 laser.
MACHINE COMPATIBILTY
| Material | FAYb Laser Marker | Co2 Laser Marker |
|---|---|---|
| Metal | ||
| Iron | • | X |
| Carbon Steel | • | X |
| Alloy Steel | • | X |
| Copper, Brass | • | X |
| Aluminium Alloy | • | X |
| Magnesium Alloy | • | X |
| Titanium Alloy | • | X |
| Nickel Alloy | • | X |
| Gold, Silver | 0 | X |
| Resin | ||
| ABS (Acrylonitrile Butadiene Styrene) | • | X |
| EP (Epoxy) | • | X |
| PA (Polyamide / nylon) | • | 0 |
| PBT (Polybutylene Terephthalate) | • | 0 |
| PC (Polycarbonate) | • | 0 |
| PE (Polyethylene) | 0 | 0 |
| PET (Polyethylene Terephthalate) | 0 | • |
| PF (Phenol) | • | • |
| PMMA (Acrylic) | • | 0 |
| POM (Polyacetal) | • | 0 |
| PP (Polypropylene) | • | 0 |
| PS (Polystyrene) | • | 0 |
| PU (Polyurethane) | • | 0 |
| PVC (Polyvinyl Chloride) | 0 | • |
| Others | ||
| UF (Urea) | • | • |
| Silicone Resin | 0 | 0 |
| Ceramics | 0 | 0 |
| Wood | Δ | • |
| Paper | Δ | • |
| Glass | X | • |
| Rubber | • | • |
| Legend | • = Good 0 = Usable Δ = Incompatible X = Non-usable | |
SPECIFICATIONS
Machine Specifications | SNMT 20 | SNMT 30 | SNMT 50 | SNMT 100 |
|---|---|---|---|---|
| Laser Power | 20W | 30W | 50W | 100W |
| Guide/Pointer | Red Semiconductor laser, Class 2 Laser, Maximum Output 1W or less | |||
| Scanning Method | Galvano Scanning Method | |||
| Marking Field (MM) | 100×100 / 200×200 / 300×300 | |||
| Min. Line Width | 0.03mm | |||
| Character types | English uppercase letters, English lowercase letters, Numerals, true type front-309, JSF Font-7 Dotmatrix Font-1, symbols | |||
| BarCodes | Code39, Code128(GS1-128), ITF, NW-7, EAN/UPC, GS1 DataBar Limited, GS1 Databar Stacked, FGS1 DataBar Limited CC-A, GS1 DataBar Stacked CC-A | |||
| 2D Codes | QR Codes, Micro QR Codes, Data Matrix, GS1 DataMatrix, PDF 417 | |||
| Figure Data | DXF, HPGL, BMP, JPEG, AI, JPC, SVG, PIT | |||
| Cooling Methods | Head naturally air cooling controller forced air cooling | |||
| Power Supply (Note 5) | 220–264 V AC (Including power voltage fluctuation of ±10%), 50 Hz | |||
| Power consumption (Note 6) | 700 VA or Less (3.2 A or less) | |||
| Ambient temperature (Note 7) | 0° to 40°C, +32 to 104°F | |||
| Supplied software | Ezcad | |||
| OS supported by the supplied software | Window 7 / Window 10 | |||
