ADJUSTABLE OUTPUT BEAM LASER
Adjustable Output Beam Laser
1000/1000-6000/6000W
AOB Adjustable Composite Spot Laser features independently controllable dual-spot (inner/outer ring) operation, delivering high flexibility, precision, and intelligent operation to meet complex and demanding application requirements.

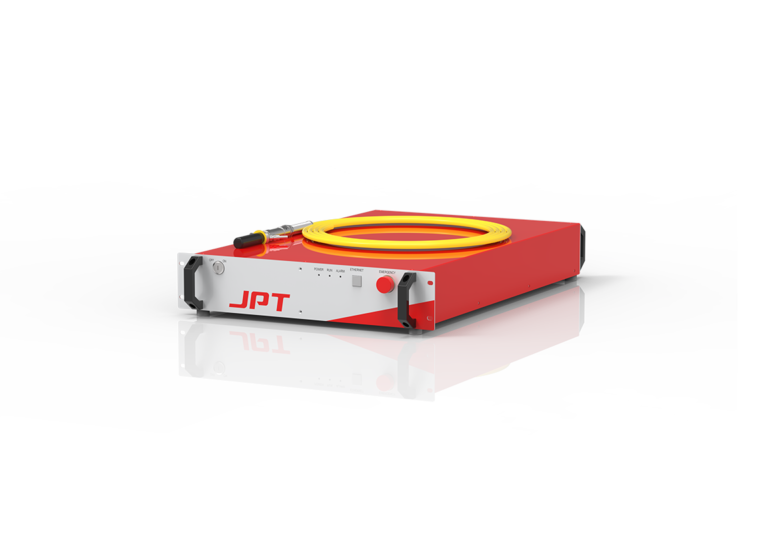

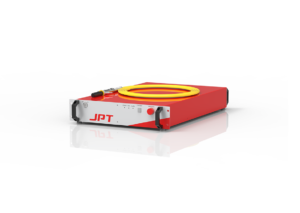

2000/2000W Single-Mode Model

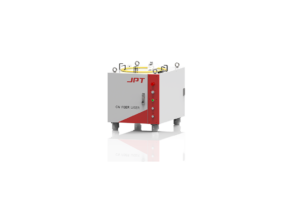

6000/6000W Multimode Model
1000-6000W Dual-Range Power Options

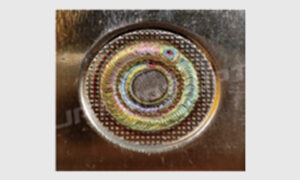

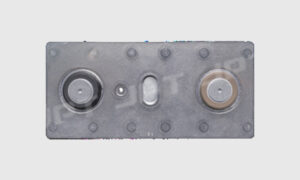

APPLICATIONS
° Independent Inner/Outer Spot Adjustment
Minimized power fluctuation ensures consistent and repeatable processing performance
° High-Reflective Material Resistance
Effectively suppresses back-reflected light damage for processing various highly reflective materials
° Customizable Power & Core Diameter
Multiple power levels and fiber core diameter options available to meet customized application requirements
ADVANTAGES
SPECIFICATIONS
Parameter | Unit | AOB-1000/1000-L2-W | AOB-1500/1500-L2-W | AOB-2000/2000-L2-W | AOB-2000/2000-L-W | AOB-2000/4000-L-W | AOB-3000/3000-L-W | AOB-4000/2000-L-W | AOB-4000/4000-L-W | AOB-6000/6000-L-W |
|---|---|---|---|---|---|---|---|---|---|---|
| Product Model | AOB-1000/1000-L2-W | AOB-1500/1500-L2-W | AOB-2000/2000-L2-W | AOB-2000/2000-L-W | AOB-2000/4000-L-W | AOB-3000/3000-L-W | AOB-4000/2000-L-W | AOB-4000/4000-L-W | AOB-6000/6000-L-W | |
| Beam Parameter Product (Central Beam) | mm×mrad | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm | <2.2 @50µm |
| Beam Parameter Product (Annular Beam) | mm×mrad | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm | ≤7 @150µm |
| Armored Cable Length | m | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Central Power | W | 1000 | 1500 | 2000 | 2000 | 2000 | 3000 | 4000 | 4000 | 6000 |
| Ring Power | W | 1000 | 1500 | 2000 | 2000 | 4000 | 3000 | 2000 | 4000 | 6000 |
| Maximum Modulation Frequency | kHz | 10 | 10 | 10 | 10 | 5 | 5 | 5 | 5 | 5 |
| Cooling Method | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | |
| Operating Voltage | V | 220 (AC) | 220 (AC) | 220 (AC) | 380 (AC) | 380 (AC) | 380 (AC) | 380 (AC) | 380 (AC) | 380 (AC) |
| Maximum Power Consumption | kW | 6 | 9 | 12 | 14 | 20 | 20 | 20 | 27 | 40 |
| Central Emission Wavelength | nm | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Spectral Width @3dB | nm | <6 | <6 | <6 | <6 | <6 | <6 | <6 | <6 | <6 |
| Operating Temperature | °C | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 |
| Laser Weight | kg | 37 | 41 | 43 | 210 | 240 | 220 | 220 | 255 | 350 |
| Dimensions (L×W×H) | mm | 742×482×105 | 742×482×105 | 742×482×105 | 1120×674×797 | 1120×674×797 | 1120×674×797 | 1120×674×797 | 1120×674×797 | 1253×600×1337 |
